Titanium 6Al-4V Grade 5 sheet is a versatile and high-performance alloy that has found widespread use across various industries. This alpha-beta titanium alloy, composed of 6% aluminum, 4% vanadium, and the balance titanium, offers an exceptional combination of strength, lightweight properties, and corrosion resistance. Its unique characteristics make it an ideal material for applications requiring high strength-to-weight ratios and excellent durability in demanding environments. In this blog post, we'll explore the main uses of Titanium 6Al-4V Grade 5 sheet and delve into some frequently asked questions about this remarkable material.



How is Titanium 6Al-4V Grade 5 sheet used in aerospace applications?

The aerospace industry is one of the primary beneficiaries of Titanium 6Al-4V Grade 5 sheet's exceptional properties. This alloy's high strength-to-weight ratio makes it an invaluable material for aircraft and spacecraft components, where every gram of weight savings translates to improved fuel efficiency and performance.

In commercial and military aircraft, Titanium 6Al-4V Grade 5 sheet is used extensively in the following applications:

• Airframe structures: The alloy is used in critical structural components such as wing spars, fuselage frames, and bulkheads. Its high strength allows for thinner, lighter structures without compromising safety.
• Engine components: Titanium 6Al-4V is found in various engine parts, including fan blades, compressor discs, and exhaust nozzles. Its heat resistance and strength make it ideal for withstanding the extreme temperatures and stresses in jet engines.
• Landing gear: The material's high strength and excellent fatigue resistance make it suitable for landing gear components, which must withstand repeated stress cycles during takeoffs and landings.
• Hydraulic systems: Titanium 6Al-4V is used in hydraulic tubing and fittings due to its corrosion resistance and compatibility with hydraulic fluids.

In spacecraft and satellite applications, Titanium 6Al-4V Grade 5 sheet finds use in:

• Structural components: The alloy's lightweight properties and strength make it ideal for spacecraft frames and support structures.
• Propulsion systems: Titanium 6Al-4V is used in rocket engine components and propellant tanks due to its high strength-to-weight ratio and compatibility with various propellants.
• Heat shields: The material's heat resistance makes it suitable for thermal protection systems in spacecraft re-entry vehicles.

The aerospace industry's reliance on Titanium 6Al-4V Grade 5 sheet is expected to grow as manufacturers continue to seek ways to reduce aircraft weight and improve fuel efficiency. The alloy's excellent balance of properties makes it an indispensable material in the quest for more advanced and efficient aerospace technologies.

What are the advantages of using Titanium 6Al-4V Grade 5 sheet in medical implants?

Titanium 6Al-4V Grade 5 sheet has become a material of choice in the medical industry, particularly for implants and surgical devices. Its unique combination of properties offers several advantages that make it ideal for use in the human body.

The key advantages of using Titanium 6Al-4V Grade 5 sheet in medical implants include:

1. Biocompatibility: Titanium 6Al-4V is highly biocompatible, meaning it is well-tolerated by the human body and does not cause adverse reactions or allergies. This property is crucial for long-term implants, as it minimizes the risk of rejection or complications.
2. Osseointegration: The alloy has the remarkable ability to integrate with bone tissue, a process known as osseointegration. This property is particularly valuable in dental implants and orthopedic prostheses, as it allows for a strong, stable connection between the implant and the surrounding bone.
3. Corrosion resistance: Titanium 6Al-4V's excellent corrosion resistance ensures that implants maintain their structural integrity over time, even when exposed to bodily fluids and tissues.
4. High strength-to-weight ratio: The alloy's lightweight nature and high strength make it ideal for implants that need to be both durable and comfortable for the patient.
5. Non-magnetic properties: Titanium 6Al-4V is non-magnetic, which is essential for patients who may need to undergo MRI scans in the future.

Titanium 6Al-4V Grade 5 sheet is used in a wide range of medical applications, including:

• Orthopedic implants: Hip and knee replacements, bone plates, screws, and rods for fracture fixation.
• Dental implants: Artificial tooth roots and dental prosthetics.
• Cardiovascular devices: Stents, heart valve components, and pacemaker casings.
• Spinal implants: Vertebral body replacements, interbody fusion cages, and spinal rods.
• Craniofacial and maxillofacial implants: Skull plates, jaw replacements, and facial reconstruction components.

The use of Titanium 6Al-4V Grade 5 sheet in medical implants has revolutionized the field of orthopedics and dentistry, providing patients with long-lasting, reliable solutions that improve their quality of life. As medical technology continues to advance, the role of this versatile alloy in healthcare is likely to expand further, potentially leading to new and innovative treatments.

How does Titanium 6Al-4V Grade 5 sheet perform in marine environments?

Titanium 6Al-4V Grade 5 sheet exhibits exceptional performance in marine environments, making it a valuable material for various maritime and offshore applications. Its unique combination of properties addresses many of the challenges posed by exposure to seawater and harsh marine conditions.

The key factors contributing to Titanium 6Al-4V Grade 5 sheet's excellent performance in marine environments include:

1. Superior corrosion resistance: Titanium 6Al-4V forms a stable, protective oxide layer on its surface when exposed to oxygen. This layer provides excellent resistance to corrosion from seawater, saltwater spray, and marine organisms.
2. High strength-to-weight ratio: The alloy's lightweight nature combined with its high strength makes it ideal for marine applications where weight reduction is crucial, such as in boat and ship components.
3. Fatigue resistance: Titanium 6Al-4V exhibits excellent fatigue properties, which is essential for components subjected to cyclic loading in marine environments, such as propeller shafts and hull structures.
4. Low thermal expansion: The material's low coefficient of thermal expansion helps maintain dimensional stability in components exposed to temperature fluctuations in marine settings.
5. Resistance to erosion and cavitation: Titanium 6Al-4V shows good resistance to erosion and cavitation damage, which is particularly important for marine propulsion systems and underwater equipment.

Titanium 6Al-4V Grade 5 sheet finds applications in various marine and offshore industries, including:

• Shipbuilding: Hull plating, propeller shafts, heat exchangers, and seawater pumps.
• Offshore oil and gas: Risers, drilling equipment, subsea valves, and wellhead components.
• Desalination plants: Heat exchangers, pumps, and piping systems exposed to seawater.
• Marine research equipment: Underwater sensors, ROV (Remotely Operated Vehicle) components, and oceanographic instruments.
• Recreational marine: High-performance boat components, yacht fittings, and diving equipment.

The use of Titanium 6Al-4V Grade 5 sheet in marine environments offers several benefits:

• Extended service life: The material's corrosion resistance significantly extends the lifespan of components, reducing maintenance costs and downtime.
• Weight reduction: The alloy's high strength-to-weight ratio allows for lighter structures, improving fuel efficiency in marine vessels.
• Reduced maintenance: Titanium 6Al-4V's resistance to corrosion and fouling minimizes the need for frequent cleaning and maintenance of marine equipment.
• Improved performance: The material's properties contribute to enhanced performance in various marine applications, from propulsion systems to structural components.

As the marine industry continues to face challenges related to corrosion, weight reduction, and environmental regulations, the use of Titanium 6Al-4V Grade 5 sheet is likely to increase. Its exceptional performance in marine environments makes it a valuable material for innovating and improving various maritime and offshore technologies.

Conclusion

Titanium 6Al-4V Grade 5 sheet has proven to be an incredibly versatile and valuable material across multiple industries. Its unique combination of high strength, low weight, excellent corrosion resistance, and biocompatibility makes it an ideal choice for applications ranging from aerospace and medical implants to marine environments. As technology continues to advance and industries seek more efficient and durable materials, the importance of Titanium 6Al-4V Grade 5 sheet is likely to grow, driving further innovation and improvements in various fields.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

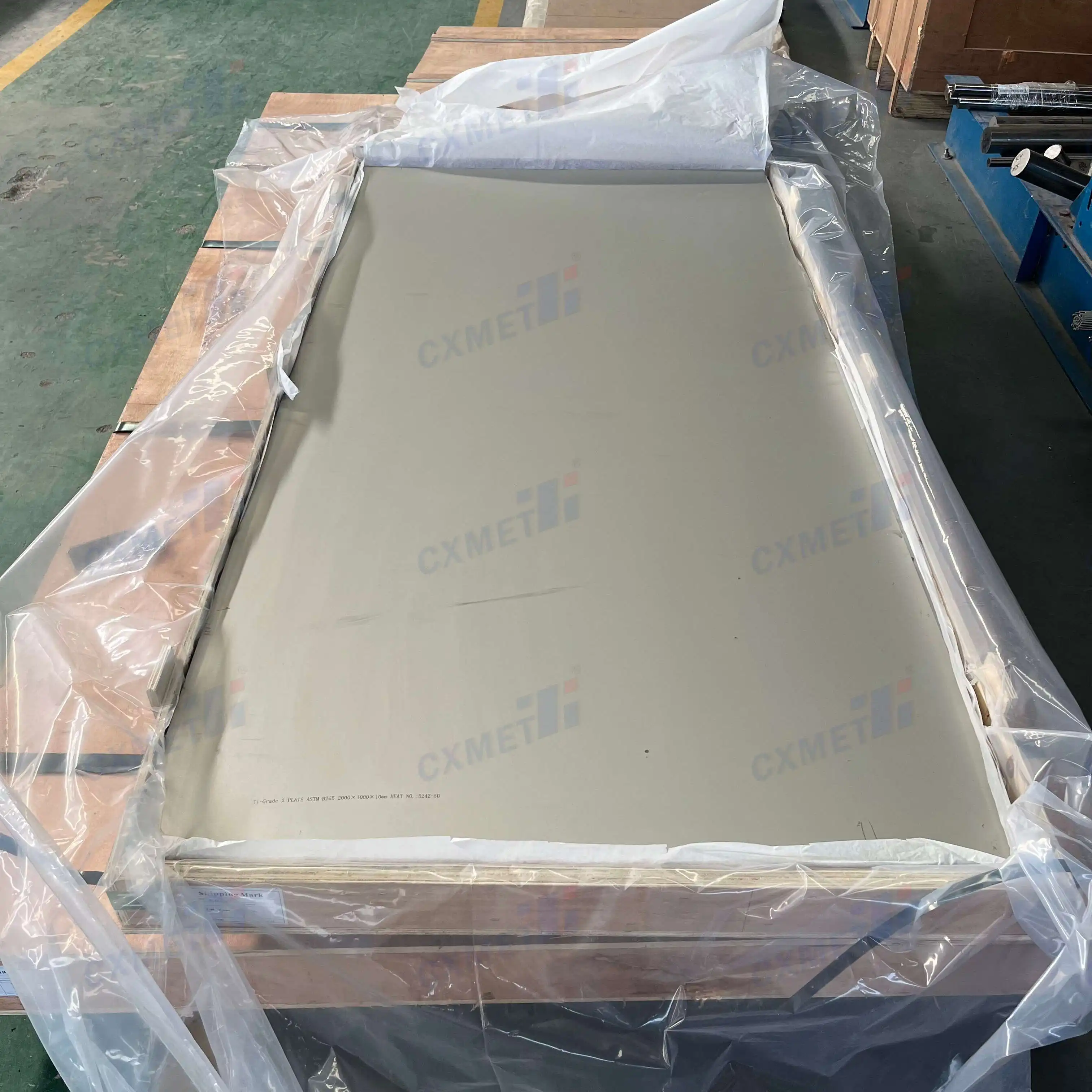

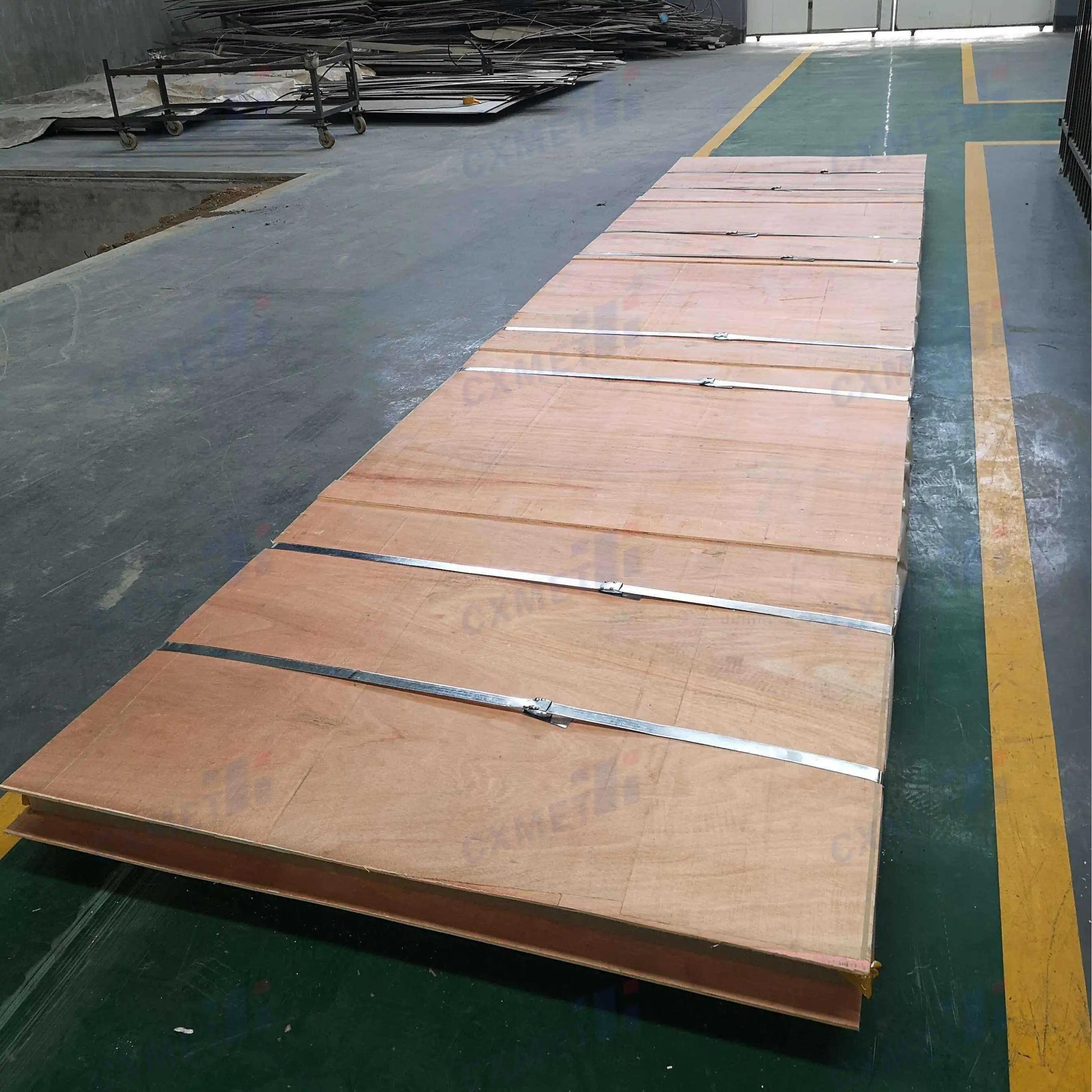

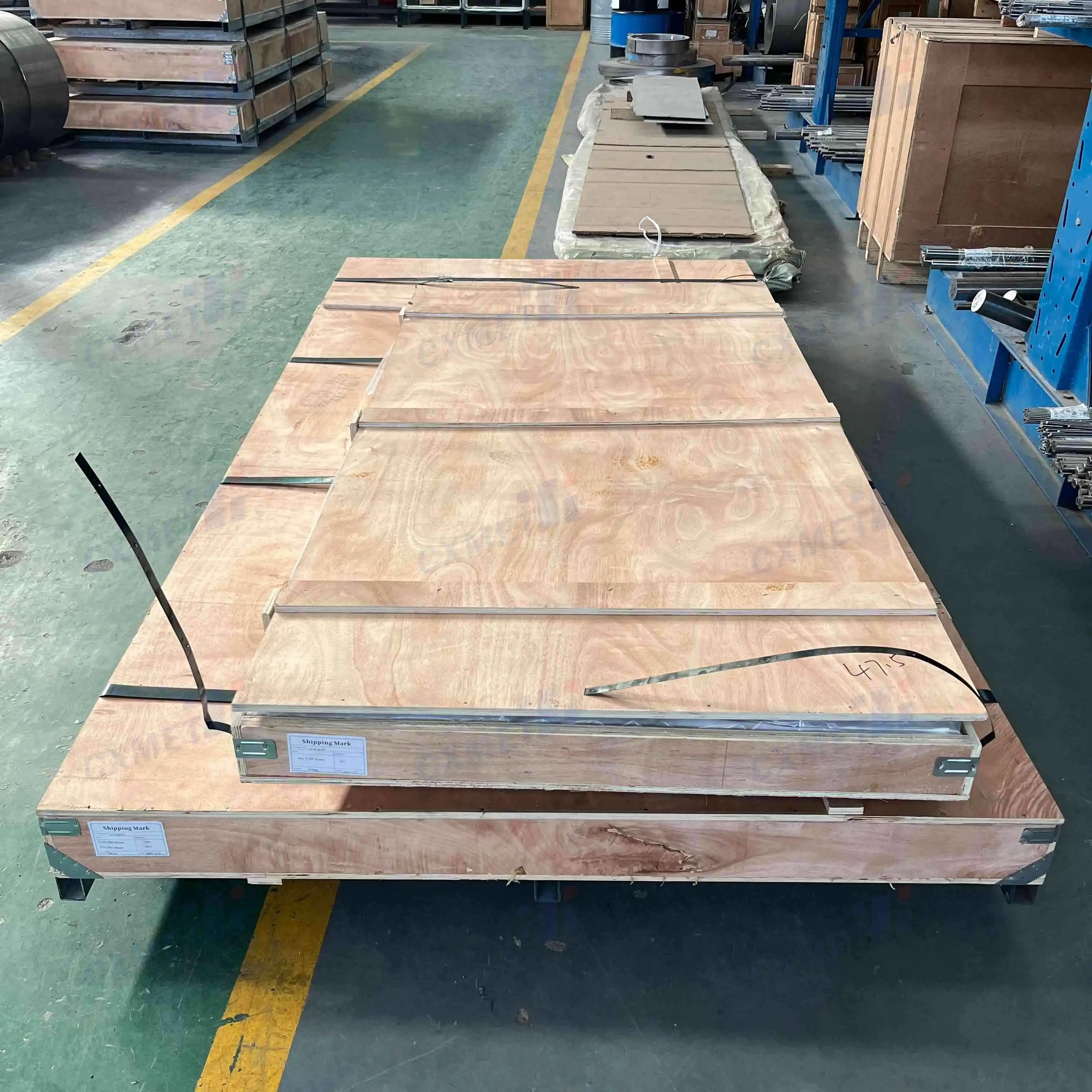

Sheet packaging

.
