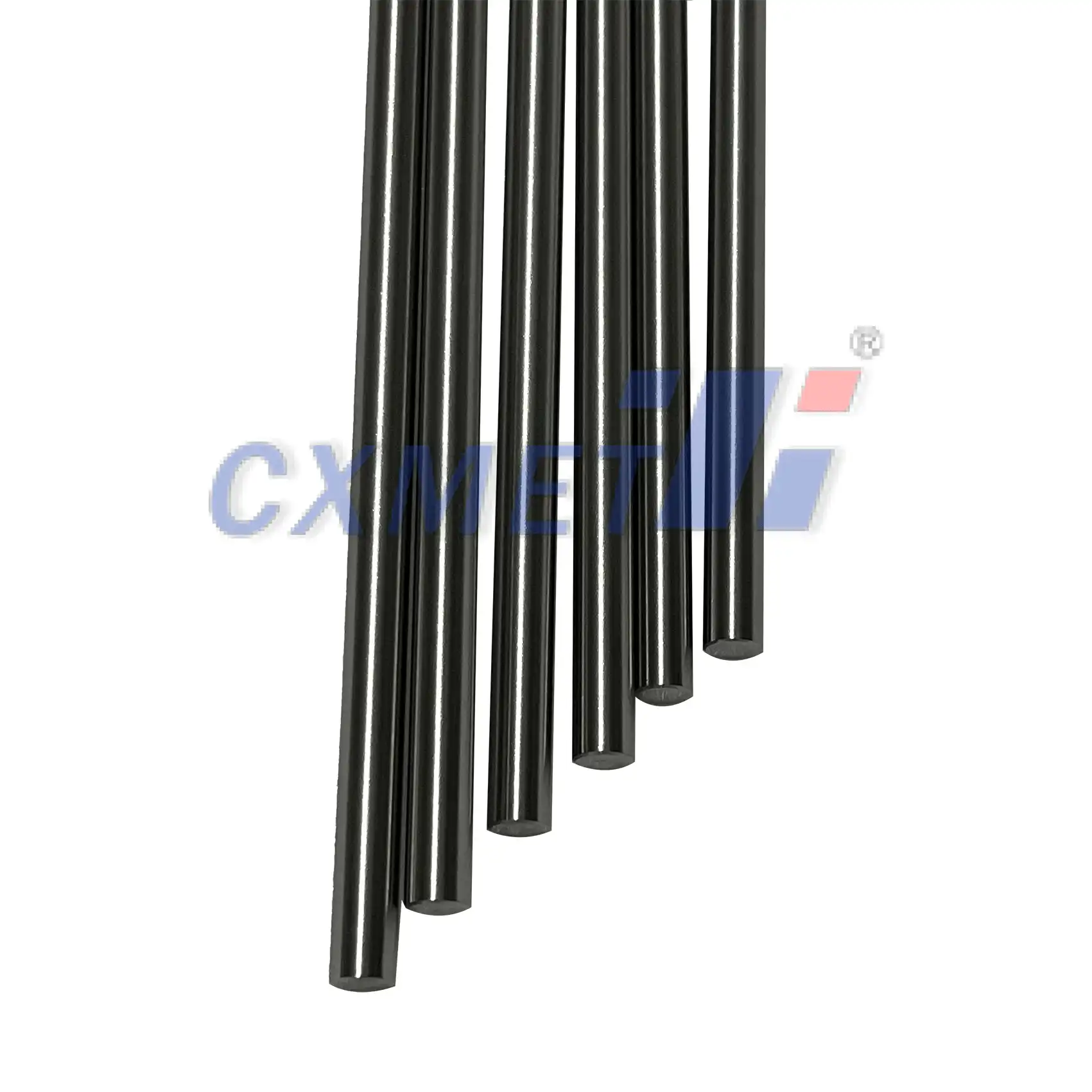

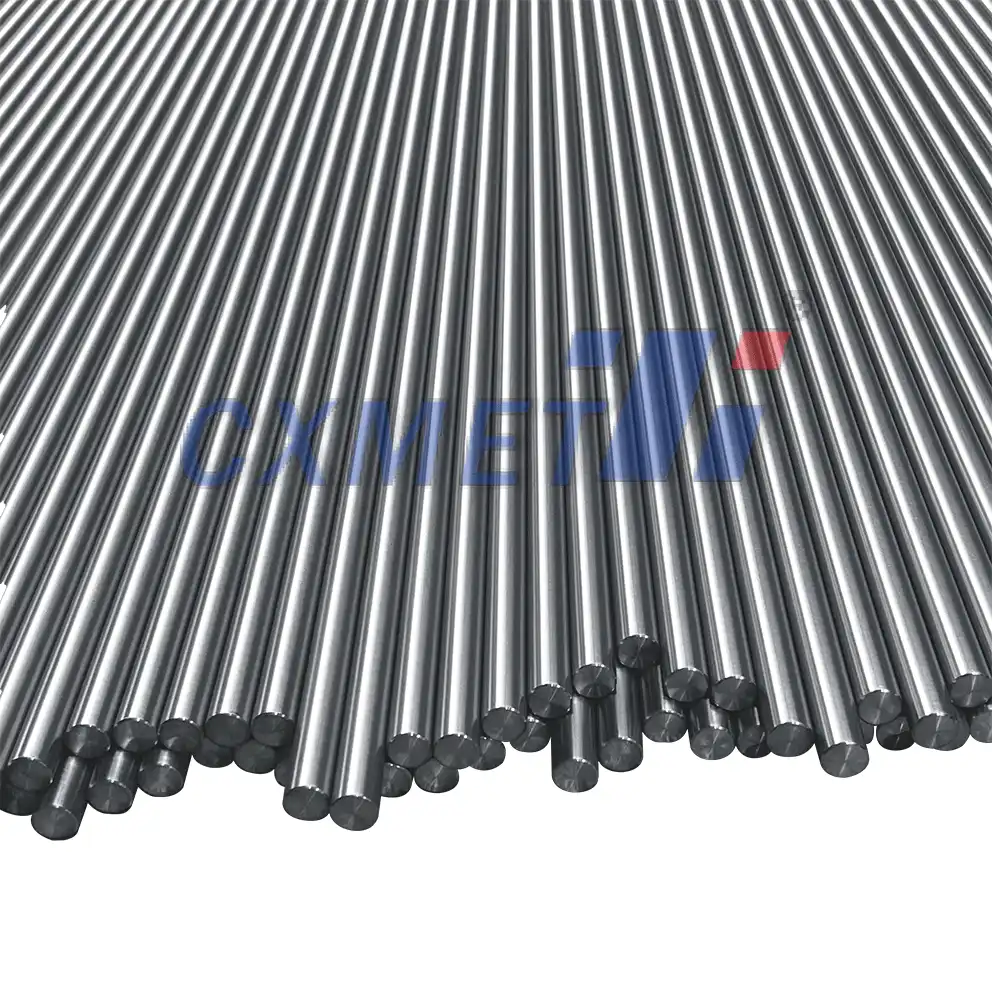

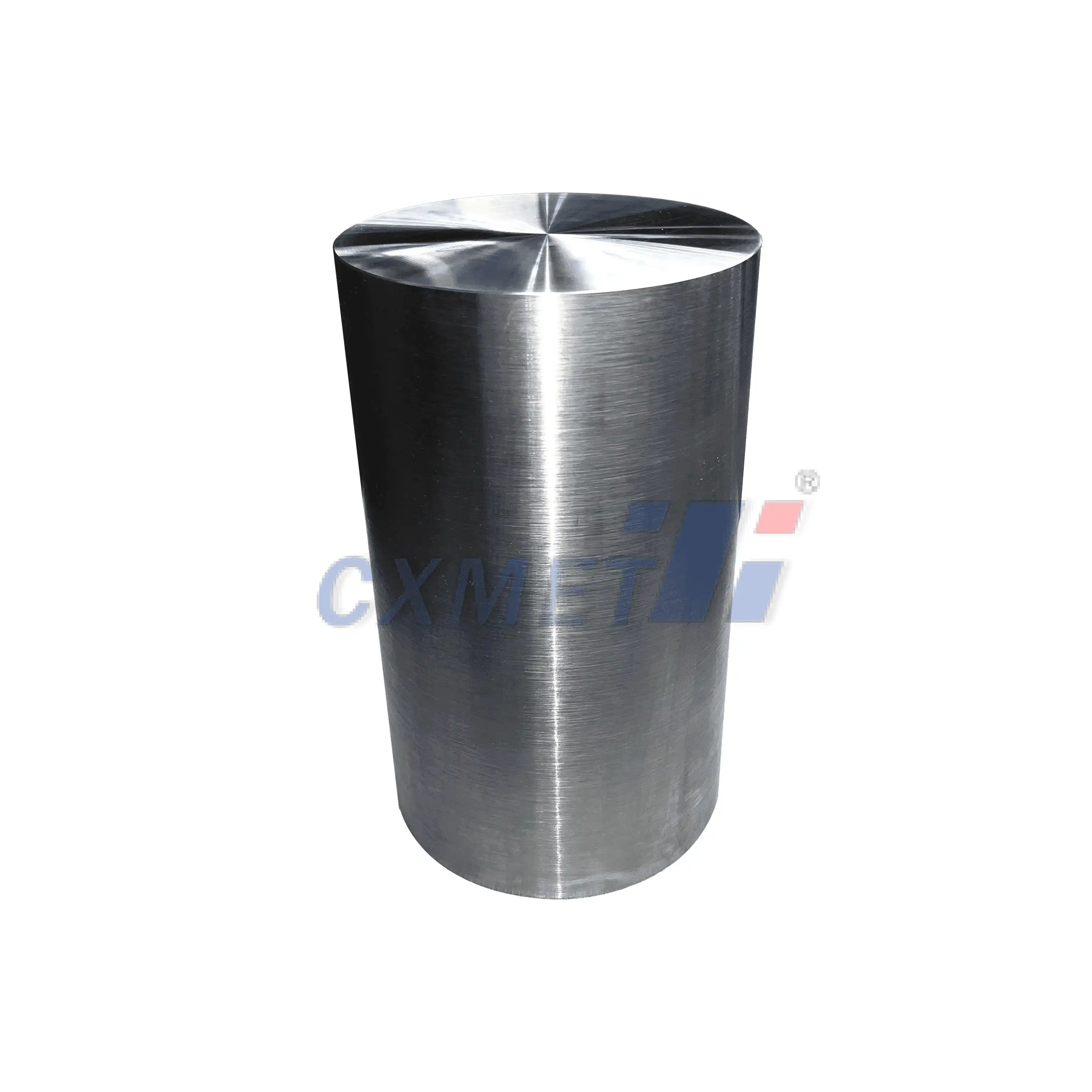

Grade 6 titanium bar, also known as Ti-6Al-4V ELI (Extra Low Interstitial), is a high-strength, low-weight alloy widely used in various industries due to its exceptional properties. This alpha-beta titanium alloy offers an excellent combination of strength, corrosion resistance, and biocompatibility, making it a popular choice for aerospace, medical, and marine applications. In this blog post, we'll explore the key properties of Grade 6 titanium bar and discuss its advantages in different sectors.

How does Grade 6 Titanium Bar compare to other titanium grades?

Grade 6 Titanium Bar is often compared to other titanium grades, particularly Grade 5 (Ti-6Al-4V), as they share similar compositions. However, Grade 6 has some distinct advantages that set it apart:

1. Lower interstitial content: Grade 6 titanium has reduced levels of oxygen, nitrogen, and carbon compared to Grade 5. This results in improved ductility and fracture toughness, making it more suitable for applications requiring high reliability and fatigue resistance.
2. Enhanced biocompatibility: The lower interstitial content in Grade 6 titanium also contributes to its superior biocompatibility. This makes it an excellent choice for medical implants and devices, as it reduces the risk of adverse reactions in the human body.
3. Improved low-temperature performance: Grade 6 titanium maintains its mechanical properties better at cryogenic temperatures compared to Grade 5. This characteristic makes it valuable for aerospace and other applications involving extreme cold environments.
4. Higher purity: The extra-low interstitial content in Grade 6 titanium results in a purer alloy with more consistent properties. This uniformity is crucial for applications requiring precise performance and reliability.
5. Excellent fatigue strength: Grade 6 titanium exhibits superior fatigue strength compared to many other titanium alloys. This property is particularly beneficial in applications involving cyclic loading or repeated stress, such as aerospace components and medical implants.

While Grade 6 titanium shares many similarities with Grade 5, its enhanced properties make it the preferred choice for applications requiring higher purity, improved biocompatibility, and better performance in extreme conditions. However, it's worth noting that Grade 6 titanium is generally more expensive than Grade 5 due to its more stringent production requirements and lower interstitial content.

What are the mechanical properties of Grade 6 Titanium Bar?

Grade 6 Titanium Bar possesses impressive mechanical properties that contribute to its widespread use in demanding applications. Understanding these properties is crucial for engineers and designers when selecting materials for specific projects. Let's delve into the key mechanical characteristics of Grade 6 titanium bar:

1. Tensile strength: Grade 6 titanium bar typically has an ultimate tensile strength ranging from 860 to 965 MPa (125 to 140 ksi). This high strength-to-weight ratio makes it an excellent choice for applications requiring robust materials with minimal weight.
2. Yield strength: The yield strength of Grade 6 titanium bar is approximately 790 to 827 MPa (115 to 120 ksi). This property indicates the stress at which the material begins to deform plastically, providing engineers with crucial information for design calculations.
3. Elongation: Grade 6 titanium exhibits excellent ductility, with an elongation percentage typically ranging from 10% to 15%. This property allows the material to undergo significant plastic deformation before failure, enhancing its reliability in various applications.
4. Modulus of elasticity: The modulus of elasticity for Grade 6 titanium is approximately 114 GPa (16.5 x 10^6 psi). This value represents the material's stiffness and its ability to resist elastic deformation under applied loads.
5. Fatigue strength: Grade 6 titanium bar demonstrates exceptional fatigue strength, with a fatigue limit of about 510 MPa (74 ksi) at 10^7 cycles. This property is crucial for components subjected to cyclic loading, such as aerospace parts and medical implants.
6. Fracture toughness: The fracture toughness of Grade 6 titanium is typically higher than that of Grade 5, with values ranging from 66 to 110 MPa√m. This enhanced toughness contributes to the material's resistance to crack propagation and improved overall reliability.
7. Hardness: Grade 6 titanium bar usually has a Rockwell C hardness ranging from 30 to 35 HRC. This moderate hardness provides a good balance between wear resistance and machinability.
8. Density: With a density of approximately 4.43 g/cm³, Grade 6 titanium offers an excellent strength-to-weight ratio, making it ideal for weight-sensitive applications in aerospace and automotive industries.

These mechanical properties contribute to Grade 6 titanium bar's versatility and reliability in various applications. Its combination of high strength, low weight, and excellent fatigue resistance makes it an ideal choice for critical components in aerospace, medical, and marine industries. However, it's important to note that these properties can vary slightly depending on the specific heat treatment and manufacturing processes used.

What industries benefit most from using Grade 6 Titanium Bar?

Grade 6 Titanium Bar finds applications across numerous industries due to its unique combination of properties. Let's explore the sectors that benefit most from using this exceptional material:

1. Aerospace industry: The aerospace sector is one of the primary beneficiaries of Grade 6 titanium bar. Its high strength-to-weight ratio, excellent fatigue resistance, and ability to withstand extreme temperatures make it ideal for various aircraft components, including:
   • Structural parts in airframes
   • Engine components
   • Landing gear systems
   • Fasteners and bolts
   • Hydraulic systems
   The material's low-temperature performance also makes it suitable for cryogenic applications in spacecraft and satellites.
2. Medical industry: Grade 6 titanium's biocompatibility and low reactivity with human tissues make it an excellent choice for medical applications, such as:
   • Orthopedic implants (hip replacements, knee joints)
   • Dental implants
   • Surgical instruments
   • Cardiovascular devices (pacemaker casings, heart valves)
   • Spinal fusion cages
   The material's high strength and fatigue resistance ensure long-lasting performance in these critical applications.
3. Marine industry: The corrosion resistance of Grade 6 titanium bar makes it valuable in marine environments. It is used in:
   • Offshore oil and gas equipment
   • Submarine components
   • Propeller shafts
   • Desalination plants
   • Heat exchangers in marine systems
   Its ability to withstand saltwater corrosion significantly extends the lifespan of marine equipment.
4. Chemical processing industry: Grade 6 titanium's excellent corrosion resistance in various chemical environments makes it suitable for:
   • Chemical reactors
   • Storage tanks
   • Piping systems
   • Heat exchangers
   • Valve components
   The material's durability in aggressive chemical environments helps reduce maintenance costs and improves safety in chemical processing facilities.
5. Automotive industry: While not as widespread as in aerospace, Grade 6 titanium is used in high-performance automotive applications, including:
   • Racing car components
   • High-performance engine parts
   • Exhaust systems
   • Suspension components
   • Connecting rods
   Its high strength-to-weight ratio contributes to improved fuel efficiency and performance in these applications.
6. Sports and leisure industry: Grade 6 titanium's properties are also advantageous in sports equipment manufacturing, such as:
   • Golf club heads
   • Bicycle frames
   • Tennis racket frames
   • Camping gear (cookware, utensils)
   • Diving equipment
   The material's lightweight nature and corrosion resistance make it popular in these applications.

These industries benefit from Grade 6 Titanium Bar's unique combination of properties, including high strength, low weight, excellent corrosion resistance, and biocompatibility. While the initial cost of Grade 6 titanium may be higher than some alternative materials, its long-term performance and durability often result in reduced lifecycle costs and improved product reliability. As manufacturing techniques continue to evolve and become more cost-effective, it's likely that the use of Grade 6 titanium bar will expand into even more industries and applications.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References

1. ASTM International. (2021). ASTM B348 - Standard Specification for Titanium and Titanium Alloy Bars and Billets.
2. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
3. Donachie, M. J. (2000). Titanium: A Technical Guide. ASM International.
4. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications. John Wiley & Sons.
5. Lutjering, G., & Williams, J. C. (2007). Titanium (Engineering Materials and Processes). Springer.
6. MatWeb. (n.d.). Titanium Ti-6Al-4V ELI (Grade 23), Annealed.
7. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
8. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
9. Titanium Industries. (n.d.). Grade 23 Titanium.
10. Veiga, C., Davim, J. P., & Loureiro, A. J. R. (2012). Properties and applications of titanium alloys: A brief review. Reviews on Advanced Materials Science, 32(2), 133-148.
