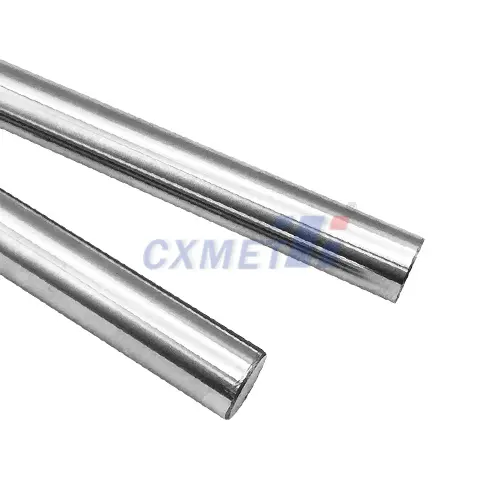

Titanium AMS 6242 rods are a crucial component in the aerospace industry, renowned for their exceptional strength-to-weight ratio and corrosion resistance. These rods, made from a specialized titanium alloy, find extensive applications in various aircraft and spacecraft components, particularly in areas requiring high performance under extreme conditions. The AMS 6242 specification ensures that these titanium rods meet the stringent quality and performance standards demanded by the aerospace sector.

What are the key properties of Titanium AMS 6242 alloy?

Titanium AMS 6242 alloy is a high-strength, heat-treatable alpha-beta titanium alloy that offers an excellent combination of properties essential for aerospace applications. Its chemical composition typically includes 6% aluminum, 2% tin, 4% zirconium, and 2% molybdenum, with the balance being titanium.

The key properties that make Titanium AMS 6242 alloy stand out include:

1. High Strength-to-Weight Ratio: This alloy provides exceptional strength while maintaining a low density, making it ideal for aerospace applications where weight reduction is crucial. The strength-to-weight ratio of Titanium AMS 6242 is superior to many other aerospace materials, including some steels and aluminum alloys.

2. Excellent Corrosion Resistance: Titanium naturally forms a stable, protective oxide layer on its surface, providing outstanding resistance to corrosion in various environments. This property is particularly valuable in aerospace applications where components are exposed to harsh conditions, including salt spray, humidity, and various chemicals.

3. High Temperature Performance: Titanium AMS 6242 maintains its strength and stability at elevated temperatures, making it suitable for use in engine components and other high-temperature aerospace applications. It can withstand temperatures up to about 1000°F (538°C) while retaining its mechanical properties.

4. Fatigue Resistance: The alloy exhibits excellent fatigue resistance, which is crucial for components subjected to cyclic loading in aircraft and spacecraft. This property ensures the longevity and reliability of parts made from Titanium AMS 6242.

5. Creep Resistance: At elevated temperatures, this alloy demonstrates good creep resistance, maintaining its dimensional stability under sustained loads. This is particularly important for aerospace components that operate at high temperatures for extended periods.

6. Fracture Toughness: Titanium AMS 6242 offers good fracture toughness, which is essential for preventing catastrophic failures in critical aerospace components. This property ensures that the material can withstand the presence of small cracks or defects without sudden, complete failure.

7. Weldability: The alloy has good weldability, allowing for the fabrication of complex structures and the joining of components using various welding techniques. This property facilitates the manufacturing of intricate aerospace parts and assemblies.

These properties make Titanium AMS 6242 alloy an excellent choice for a wide range of aerospace applications, including structural components, engine parts, and fasteners. The combination of high strength, low weight, and excellent corrosion resistance contributes to the overall performance, efficiency, and safety of aircraft and spacecraft.

How are Titanium AMS 6242 Rods manufactured for aerospace use?

The manufacturing process of Titanium AMS 6242 rods for aerospace applications is a complex and highly controlled procedure that ensures the final product meets the stringent quality standards required by the industry. The process typically involves several stages, each critical to achieving the desired properties and performance of the material.

1. Raw Material Preparation:

The process begins with the careful selection and preparation of raw materials. High-purity titanium sponge, aluminum, tin, zirconium, and molybdenum are precisely measured and combined according to the AMS 6242 specification. The purity and quality of these raw materials are crucial, as even small impurities can significantly affect the final properties of the alloy.

2. Melting and Ingot Formation:

The raw materials are melted in a vacuum or inert atmosphere to prevent contamination. This is typically done using Vacuum Arc Remelting (VAR) or Electron Beam Melting (EBM) techniques. These processes ensure the removal of volatile impurities and the homogenization of the alloy composition. The molten metal is then cast into large ingots.

3. Primary Processing:

The ingots undergo primary processing, which may include forging, rolling, or extrusion. This step breaks down the as-cast structure of the ingot and begins to develop the desired microstructure of the alloy. The material is typically heated to temperatures above the beta transus (the temperature at which the alloy transforms from alpha+beta to all beta phase) during this stage.

4. Secondary Processing:

Secondary processing involves further shaping and refining of the material. For rod production, this often includes hot rolling or extrusion to achieve the desired rod diameter. The temperature and deformation rates during this process are carefully controlled to optimize the microstructure and mechanical properties of the alloy.

5. Heat Treatment:

Heat treatment is a critical step in the manufacturing of Titanium AMS 6242 rods. The typical heat treatment process includes:

• Solution treatment: Heating the material to a temperature just below the beta transus and holding it for a specified time to dissolve precipitates and homogenize the microstructure.
• Quenching: Rapid cooling to room temperature to retain the high-temperature microstructure.
• Aging: Heating to an intermediate temperature and holding for a specified time to allow controlled precipitation of strengthening phases.

This heat treatment sequence is designed to optimize the balance of strength, ductility, and toughness in the final product.

6. Finishing:

After heat treatment, the rods undergo finishing operations such as straightening, grinding, and polishing to achieve the required dimensional tolerances and surface finish. These processes must be carefully controlled to avoid introducing surface defects or residual stresses that could compromise the performance of the material.

7. Non-Destructive Testing:

Each rod undergoes rigorous non-destructive testing to ensure its integrity and conformity to aerospace standards. This may include ultrasonic testing to detect internal defects, eddy current testing for surface defects, and dimensional inspections.

8. Quality Control and Certification:

Throughout the manufacturing process, extensive quality control measures are implemented. This includes chemical analysis to verify composition, mechanical testing to confirm properties, and microstructural analysis to ensure proper phase distribution and grain size. Each batch of rods is typically accompanied by a certificate of conformance that details the material's properties and manufacturing history.

The manufacturing of Titanium AMS 6242 rods for aerospace use is a highly specialized process that requires advanced technology, strict process control, and extensive expertise. The result is a product that meets the exacting standards of the aerospace industry, providing the high performance and reliability required for critical applications in aircraft and spacecraft.

What are the main applications of Titanium AMS 6242 Rods in aircraft construction?

Titanium AMS 6242 rods find numerous applications in aircraft construction, leveraging their unique combination of properties to enhance performance, safety, and efficiency across various systems and components. These rods are particularly valuable in areas where high strength, low weight, and excellent corrosion resistance are paramount. Let's explore some of the main applications of Titanium AMS 6242 rods in aircraft construction:

1. Structural Components:

Titanium AMS 6242 rods are extensively used in critical structural components of aircraft. They are often employed in the construction of:

• Wing spars and ribs: These rods contribute to the strength and rigidity of the wing structure while minimizing weight.
• Fuselage frames and stringers: The high strength-to-weight ratio of these rods allows for robust fuselage construction without excessive weight penalties.
• Landing gear components: The material's excellent fatigue resistance and strength make it ideal for parts of the landing gear system that undergo repeated stress cycles.

2. Engine Components:

The high-temperature capabilities and strength of Titanium AMS 6242 make it an excellent choice for various engine components:

• Compressor blades and discs: These rods are used to manufacture compressor components that operate under high stress and temperature conditions.
• Shafts and fasteners: The material's strength and fatigue resistance are crucial for these rotating components.
• Casings and housings: Titanium AMS 6242 rods can be used to create lightweight yet strong engine casings.

3. Hydraulic and Pneumatic Systems:

The corrosion resistance and strength of these rods make them suitable for components in hydraulic and pneumatic systems:

• Actuator rods: Used in flight control surfaces, landing gear, and other systems requiring precise and reliable movement.
• Hydraulic cylinders: The material's properties allow for the construction of lightweight, corrosion-resistant hydraulic components.

4. Fasteners and Connectors:

Titanium AMS 6242 rods are often used to manufacture high-strength fasteners and connectors:

• Bolts and screws: Particularly in areas where galvanic corrosion with other materials is a concern.
• Pins and rivets: Used in critical joint assemblies where strength and weight are crucial factors.

5. Undercarriage Components:

The material's strength and corrosion resistance make it suitable for various undercarriage parts:

• Struts and shock absorbers: These components benefit from the material's fatigue resistance and strength.
• Wheel hubs and axles: Titanium AMS 6242 rods can be used to create lightweight yet strong wheel components.

The versatility of Titanium AMS 6242 rods in aircraft construction stems from their exceptional combination of properties. Their use allows aircraft designers and manufacturers to optimize performance, reduce weight, enhance durability, and improve overall efficiency. As aerospace technology continues to advance, the applications for these high-performance materials are likely to expand further, contributing to the development of more advanced, efficient, and reliable aircraft.

In conclusion, Titanium AMS 6242 rods play a crucial role in modern aerospace engineering, providing the strength, lightweight properties, and corrosion resistance necessary for a wide range of critical aircraft components. Their versatility and performance characteristics make them an indispensable material in the ongoing evolution of aircraft design and construction.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References:

1. ASM International. (2015). ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials.

2. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.

3. Donachie, M. J. (2000). Titanium: A Technical Guide. ASM International.

4. Federal Aviation Administration. (2018). Aviation Maintenance Technician Handbook - Airframe, Volume 1. U.S. Department of Transportation.

5. Inagaki, I., Takechi, T., Shirai, Y., & Ariyasu, N. (2014). Application and Features of Titanium for the Aerospace Industry. Nippon Steel & Sumitomo Metal Technical Report No. 106.

6. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications. John Wiley & Sons.

7. Lütjering, G., & Williams, J. C. (2007). Titanium. Springer Science & Business Media.

8. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, 5(6), 419-427.

9. Polmear, I., StJohn, D., Nie, J. F., & Qian, M. (2017). Light Alloys: Metallurgy of the Light Metals. Butterworth-Heinemann.

10. SAE International. (2017). AMS 6242: Titanium Alloy Bars, Wire, Forgings, and Rings 6Al-2Sn-4Zr-2Mo Solution and Precipitation Heat Treated.
