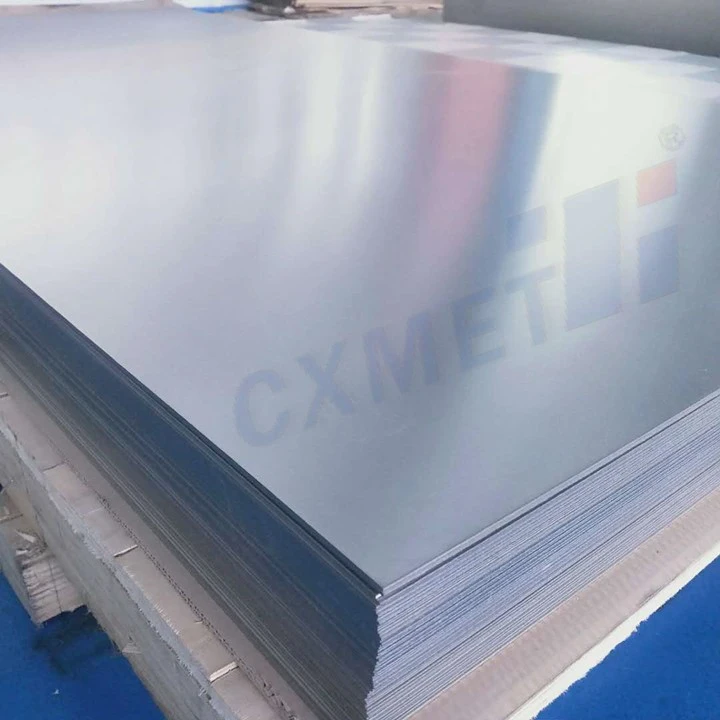

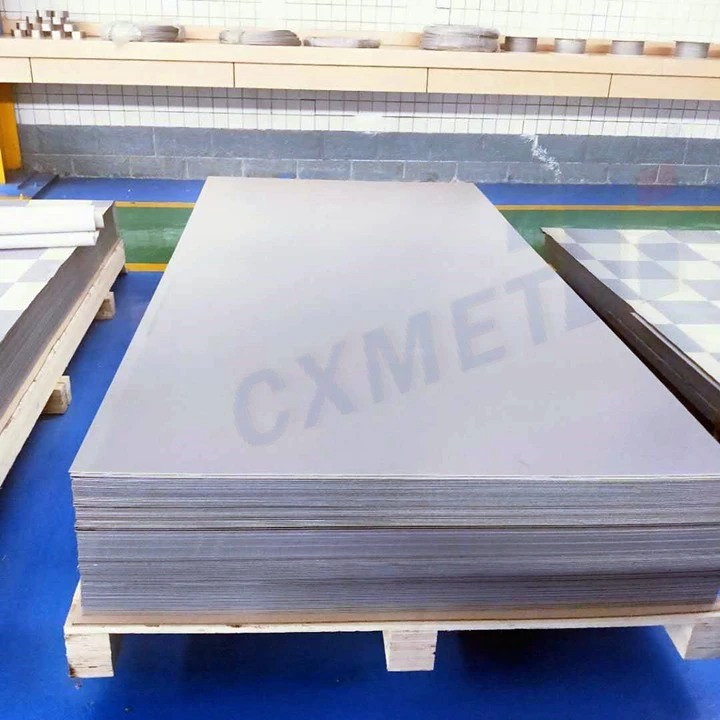

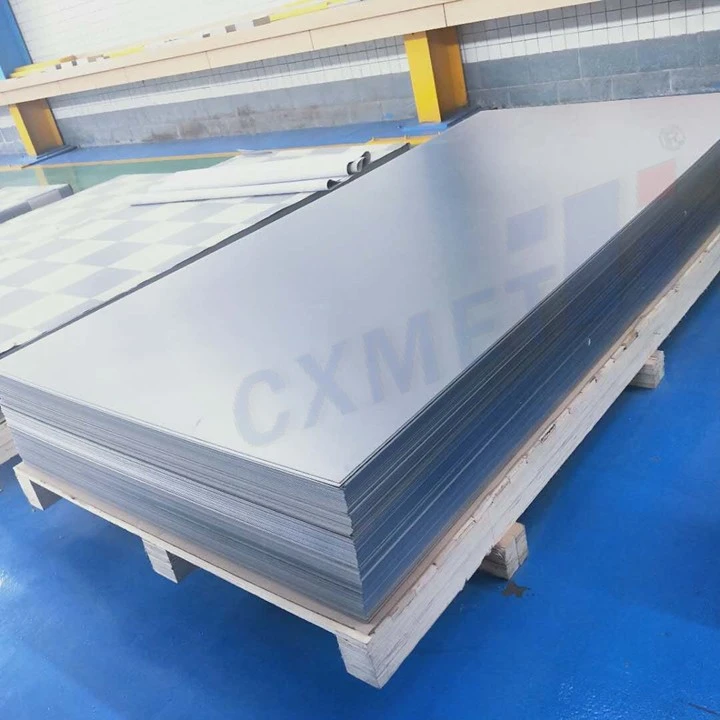

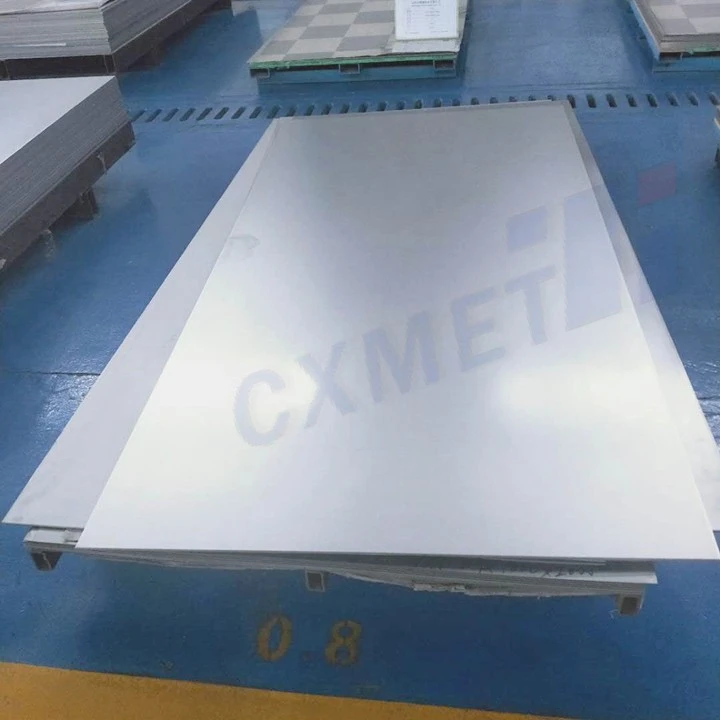

Tungsten sheets are flat, thin pieces of tungsten metal produced through various metallurgical processes. They're known for their exceptional properties, including high melting point, excellent thermal conductivity, and remarkable durability. These sheets are available in different thicknesses, dimensions, and purities, making them versatile components in industries from aerospace to electronics. As one of the densest and most heat-resistant metals on Earth, tungsten sheets provide solutions to engineering challenges where conventional metals would fail.

What Are the Primary Applications of Tungsten Sheets?

Military and Defense Applications

Tungsten sheets play a crucial role in the defense sector due to their exceptional properties. With a density nearly twice that of steel, they're utilized in armor-piercing projectiles and protective armor systems. The high density contributes to their ability to absorb kinetic energy, making them ideal for ballistic protection. Military aircraft and vehicles incorporate them in critical components that must withstand extreme conditions. Their thermal stability ensures these components maintain structural integrity even when exposed to high temperatures. Additionally, products provide radiation shielding in military facilities and equipment, protecting personnel and sensitive electronics from harmful radiation. Their combination of strength, density, and heat resistance makes them invaluable in defense technologies where reliability under extreme conditions is essential.

Industrial Manufacturing Uses

In industrial settings, tungsten sheets serve critical functions across various manufacturing processes. High-temperature furnaces and kilns use tungsten sheets as heat shields and structural components due to their exceptional thermal resistance. Even at temperatures exceeding 2000°C, tungsten sheets maintain their integrity, outlasting most alternatives. In metalworking, products are fashioned into forming dies and cutting tools that withstand extreme pressures and temperatures. Their hardness and wear resistance ensure these tools maintain precise dimensions even after extended use. Chemical processing equipment benefits from products as corrosion-resistant linings, particularly in environments involving aggressive chemicals. Glass manufacturing operations employ tungsten sheets in molds and handling equipment, as tungsten's low thermal expansion ensures dimensional stability during heating and cooling cycles.

Electronics and Semiconductor Applications

The electronics industry uses tungsten sheets for their unique electrical and thermal properties. Semiconductor manufacturing equipment incorporates them as heat spreaders and thermal management components, efficiently dissipating heat during wafer processing. The exceptional thermal conductivity helps maintain precise temperature control, crucial for semiconductor reliability. In high-power electronics, products serve as heat sinks and electrical contacts, handling high current densities without degradation. Vacuum tubes and specialized lighting systems utilize them as electrodes and structural supports due to their low vapor pressure at high temperatures. Additionally, electromagnetic shielding applications benefit from tungsten sheets' ability to block various forms of electromagnetic interference, protecting sensitive electronic equipment.

How Are Tungsten Sheets Manufactured?

Powder Metallurgy Process

The production of tungsten sheets begins with powder metallurgy techniques. High-purity tungsten powder is mixed with binding agents to improve compressibility. The powder mixture undergoes high-pressure compaction, with pressures often exceeding 30,000 psi to create a "green compact." This compact is then sintered at temperatures approaching 2500°C in controlled hydrogen atmospheres. During sintering, the tungsten particles bond together, and the material densifies as binding agents burn off. The sintered billet undergoes hot working processes, including rolling or forging at temperatures above 1200°C, which helps eliminate porosity while developing the sheet structure. This approach allows manufacturers to control the composition and microstructure of tungsten sheets, ensuring consistent properties.

Rolling and Forming Techniques

Converting tungsten billets into sheets involves sophisticated rolling and forming operations. The process begins with hot rolling, where billets are heated to 1200-1500°C to increase ductility. These heated billets pass through precision rolling mills, reducing thickness by 10-20% per pass to prevent cracking. As the material approaches intermediate thickness, warm rolling takes over at 600-800°C, allowing finer control over dimensions. For final reductions, cold rolling may be employed with intermediate annealing steps to relieve internal stresses. Throughout this process, the products develop a preferred grain orientation that enhances specific mechanical properties. Advanced rolling mills equipped with precision monitoring systems continuously adjust to maintain tight dimensional tolerances, ensuring tungsten sheets meet exact specifications.

Surface Treatment and Quality Control

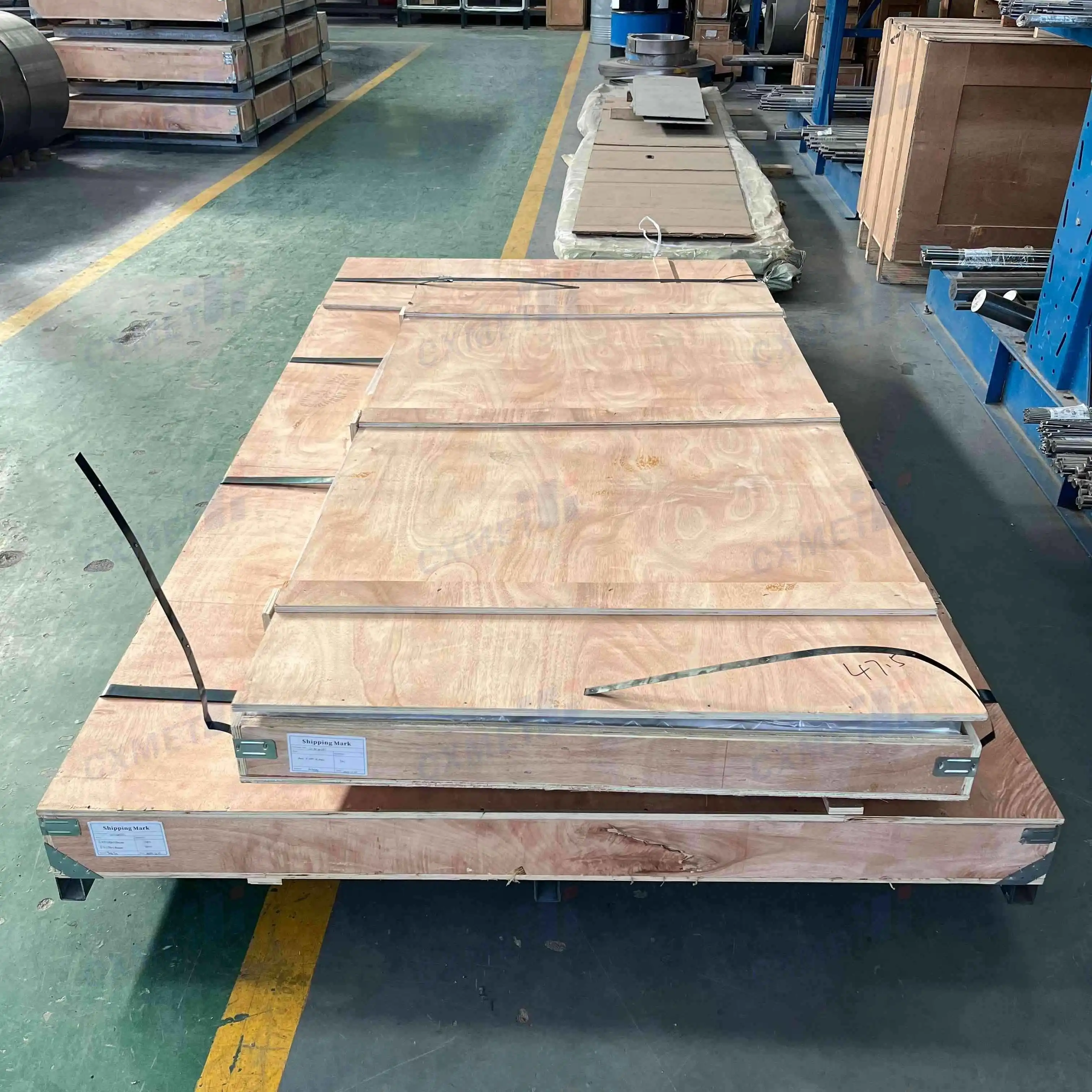

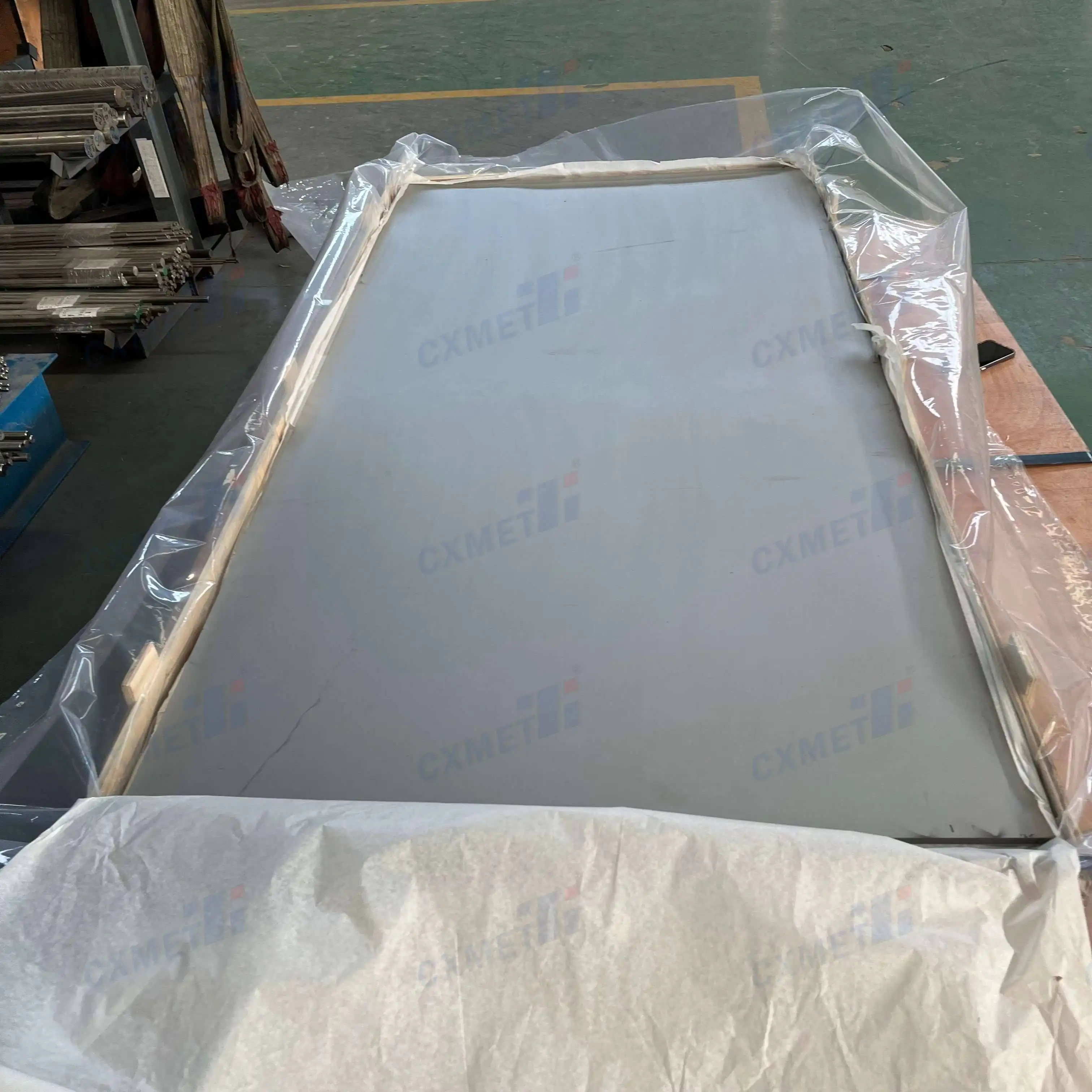

The final stages involve meticulous surface treatments and quality control. After rolling, they often undergo precision grinding and polishing to achieve the required surface finish. For enhanced properties, specialized coatings may be applied. Each sheet undergoes comprehensive testing, including ultrasonic scanning to detect internal defects and X-ray fluorescence to verify composition. Dimensional inspection using laser measurement systems confirms thickness uniformity, with deviations documented to the micron level. Mechanical testing samples verify critical properties such as tensile strength, hardness, and ductility. Surface cleanliness is maintained through controlled environments and specialized packaging. This comprehensive quality control ensures each tungsten sheet meets all relevant standards and specifications.

How Do Tungsten Sheets Compare to Other Metal Sheets?

Thermal Performance Comparison

When evaluating thermal characteristics, tungsten sheets demonstrate remarkable advantages in high-temperature environments. With a melting point of 3422°C, they substantially outperform titanium (1668°C), stainless steel (1450°C), and even molybdenum (2623°C). This exceptional thermal stability allows tungsten sheets to maintain structural integrity where other metals would melt or deform. Tungsten sheets exhibit excellent thermal conductivity (173 W/m·K), significantly higher than stainless steel (16-24 W/m·K) and titanium (21.9 W/m·K), making them superior for heat spreading applications. Their thermal expansion coefficient (4.5 × 10^-6/K) is notably lower than aluminum (23 × 10^-6/K) and copper (16.5 × 10^-6/K), resulting in minimal dimensional changes during thermal cycling. Additionally, tungsten sheets retain their strength at elevated temperatures far better than most alternatives, showing minimal degradation even at 1500°C.

Mechanical Properties Analysis

Tungsten sheets offer an exceptional combination of strength, hardness, and density. With a tensile strength ranging from 550-1900 MPa, they significantly outperform aluminum (70-700 MPa) and approach the strength of some specialty steel alloys. The Vickers hardness typically ranges from 350-500 HV, substantially exceeding aluminum (15-150 HV) and many stainless steel varieties, contributing to exceptional wear resistance. With a density of 19.3 g/cm³, tungsten sheets are approximately 2.5 times denser than steel (7.8 g/cm³) and nearly 7 times denser than aluminum (2.7 g/cm³), making them unmatched for applications requiring maximum mass in minimum volume. Despite their impressive strength, tungsten sheets exhibit relatively low ductility at room temperature, with elongation values typically below 5% compared to 10-30% for many steel sheets, requiring special consideration during forming operations.

Cost-Benefit Evaluation

When conducting a cost-benefit analysis, tungsten sheets present a nuanced value proposition. Initial procurement costs are substantially higher than conventional metal sheets, typically 10-20 times greater than stainless steel and 5-8 times higher than nickel alloys. This price differential reflects tungsten's scarcity, complex processing, and specialized manufacturing. However, in lifetime performance, they often justify their premium price. In high-temperature applications, they frequently outlast conventional alternatives by 3-5 times, reducing replacement frequency and downtime costs. Their exceptional wear resistance translates to extended service intervals, with some applications reporting maintenance costs 40-60% lower than systems using alternatives. For radiation shielding, the density advantage means thinner, more space-efficient designs that can reduce overall system dimensions by 30-50%. When normalized over the complete lifecycle, tungsten sheets often demonstrate competitive total cost of ownership despite higher initial investment, particularly in severe service environments.

Conclusion

Tungsten sheets represent a remarkable engineering material with properties that make them invaluable across numerous high-tech and industrial applications. Their exceptional thermal resistance, mechanical strength, and density provide solutions to challenges where conventional materials fail. From defense applications to electronics manufacturing, tungsten sheets continue to enable technological advancement in critical industries. While their production requires specialized expertise and their cost exceeds many alternatives, their performance benefits often justify the investment, particularly in extreme environments where reliability is paramount. At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.
