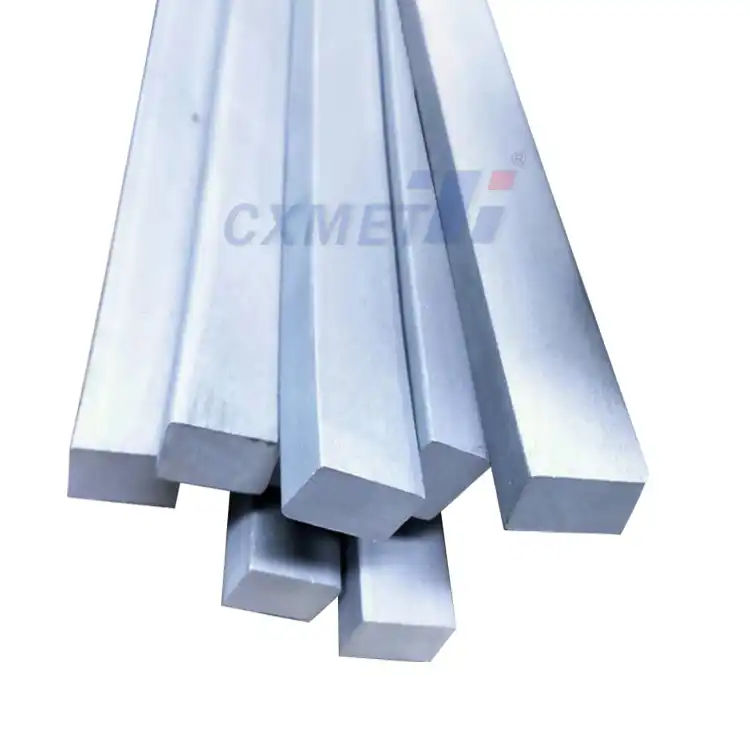

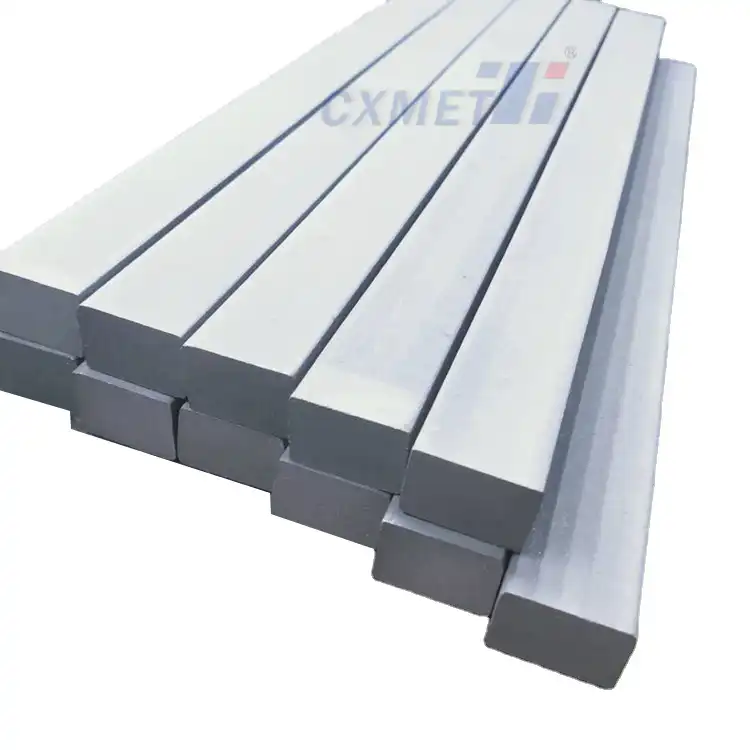

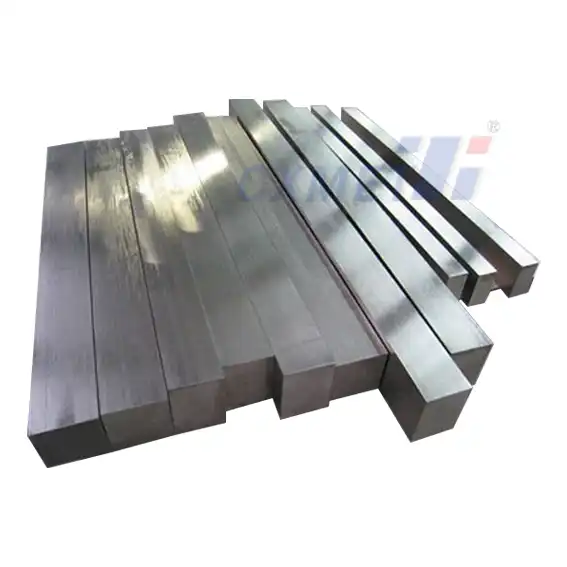

Gr12 Titanium Square Bar, also known as Grade 12 Titanium Square Bar, is a high-performance titanium alloy material widely used in various industries due to its exceptional properties. This alloy combines the strength of titanium with enhanced corrosion resistance, making it suitable for demanding applications in aerospace, marine, chemical processing, and medical industries. In this blog post, we'll explore the diverse uses of Gr12 Titanium Square Bar and its unique characteristics that make it a preferred choice for many engineering projects.

How does Gr12 Titanium Square Bar compare to other titanium grades?

Gr12 Titanium Square Bar belongs to the family of titanium alloys, but it stands out from other grades due to its unique composition and properties. To understand how Gr12 compares to other titanium grades, let's examine its characteristics and performance in various applications.

Composition and Properties: Gr12 titanium is an alpha-beta alloy containing 0.3% molybdenum and 0.8% nickel. This composition results in a material with excellent corrosion resistance, particularly in reducing environments and under crevice conditions. Compared to pure titanium grades like Gr1 or Gr2, Gr12 offers superior strength and better resistance to reducing acids.

Strength and Durability: When compared to other popular titanium grades like Gr5 (Ti-6Al-4V), Gr12 exhibits lower strength but higher ductility. This makes Gr12 more suitable for applications requiring good formability and resistance to stress corrosion cracking. The yield strength of Gr12 is typically around 380 MPa, which is higher than pure titanium grades but lower than high-strength alloys like Gr5.

Corrosion Resistance: One of the standout features of Gr12 titanium is its exceptional corrosion resistance, especially in reducing environments. It outperforms many other titanium grades in resisting attack from hydrochloric acid, sulfuric acid, and other reducing chemicals. This makes Gr12 particularly valuable in chemical processing and marine applications where exposure to corrosive substances is common.

Weldability and Fabrication: Gr12 titanium offers good weldability, which is an advantage over some higher-strength titanium alloys. It can be welded using various techniques, including TIG (Tungsten Inert Gas) welding, without significant loss of corrosion resistance or mechanical properties. This makes Gr12 easier to work with in fabrication processes compared to more complex titanium alloys.

Temperature Performance: While not as heat-resistant as some specialized high-temperature titanium alloys, Gr12 maintains good strength and corrosion resistance at moderate temperatures. It can be used in applications up to about 300°C (572°F), which is suitable for many industrial processes and equipment.

Cost and Availability: Gr12 titanium is generally more expensive than pure titanium grades but less costly than some high-performance alloys like Gr5 or Gr23. Its availability as square bar stock makes it convenient for machining and fabrication of various components.

What are the key applications of Gr12 Titanium Square Bar in the aerospace industry?

The aerospace industry is one of the primary sectors that benefit from the unique properties of Gr12 Titanium Square Bar. Its combination of strength, corrosion resistance, and relatively low weight makes it an excellent choice for various aircraft and spacecraft components. Let's explore some of the key applications of Gr12 Titanium Square Bar in aerospace:

Structural Components: Gr12 titanium is used in the manufacturing of various structural parts in aircraft and spacecraft. These include brackets, fittings, and support structures that require high strength-to-weight ratios. The square bar format allows for easy machining of these components to precise specifications, ensuring optimal performance and weight savings.

Hydraulic Systems: The corrosion resistance of Gr12 titanium makes it ideal for use in hydraulic systems of aircraft. It's commonly used in the production of hydraulic tubing, fittings, and valve bodies. These components are exposed to various hydraulic fluids and must maintain their integrity under high pressures and varying temperatures.

Landing Gear Components: While not as strong as some titanium alloys used in primary landing gear structures, Gr12 titanium finds applications in secondary components of landing gear systems. These may include smaller brackets, bushings, and fasteners that benefit from the material's corrosion resistance and durability.

Engine Components: Gr12 titanium is used in certain engine components where its corrosion resistance and moderate temperature capabilities are advantageous. This includes parts in the compressor section of jet engines, where the temperatures are not as extreme as in the combustion or turbine sections.

Fuel Systems: The resistance of Gr12 titanium to various chemicals makes it suitable for use in aircraft fuel systems. It can be used in the production of fuel line components, valves, and fittings that come into contact with aviation fuels and additives.

Space Vehicle Components: In the space industry, Gr12 titanium is used in the construction of satellite components, spacecraft structural elements, and other parts that require high performance in the vacuum of space. Its resistance to corrosion is particularly valuable in protecting against the effects of atomic oxygen in low Earth orbit.

How is Gr12 Titanium Square Bar utilized in marine and offshore applications?

Gr12 Titanium Square Bar has found significant use in marine and offshore applications due to its exceptional corrosion resistance and durability in harsh saltwater environments. The marine industry presents unique challenges, including constant exposure to seawater, varying temperatures, and high-pressure conditions. Let's explore how Gr12 Titanium Square Bar is utilized in this sector:

Offshore Oil and Gas Platforms: In the offshore oil and gas industry, Gr12 titanium is used for various components that are exposed to seawater and corrosive chemicals. These include: - Pumps and valves for seawater handling systems - Heat exchangers in desalination units - Piping systems for chemical injection - Fasteners and hardware for underwater structures The square bar format allows for easy machining of custom parts that can withstand the harsh offshore environment.

Marine Propulsion Systems: Gr12 titanium finds applications in marine propulsion systems, particularly in areas where corrosion resistance is critical. Components such as propeller shafts, rudder pins, and various fittings benefit from the material's ability to resist saltwater corrosion and maintain strength over long periods of underwater exposure.

Desalination Plants: The corrosion resistance of Gr12 titanium makes it an excellent choice for components in desalination plants. It's used in the construction of heat exchangers, pumps, and piping systems that handle highly corrosive brine solutions. The material's resistance to pitting and crevice corrosion is particularly valuable in these applications.

Underwater Robotics and Equipment: Gr12 titanium square bar is used in the manufacturing of components for remotely operated vehicles (ROVs), autonomous underwater vehicles (AUVs), and other subsea equipment. These include pressure housings, structural elements, and specialized tools that must withstand high pressures and corrosive environments.

Marine Research Equipment: Scientific instruments and equipment used in marine research often incorporate Gr12 titanium components. These can include sampling devices, sensor housings, and structural elements of underwater observatories. The material's corrosion resistance and non-magnetic properties make it ideal for sensitive scientific applications.

Offshore Wind Turbines: As the offshore wind energy sector grows, Gr12 titanium is finding applications in various components of wind turbines exposed to marine environments. This includes fasteners, brackets, and other hardware that require long-term corrosion resistance in saltwater spray conditions.

Marine Architecture: In high-end marine architecture and yacht building, Gr12 titanium is sometimes used for decorative and functional elements that require both aesthetic appeal and corrosion resistance. This can include railings, fittings, and custom hardware.

In conclusion, Gr12 Titanium Square Bar is a versatile material that finds extensive use across various industries, particularly in aerospace, marine, and chemical processing applications. Its unique combination of properties, including excellent corrosion resistance, good strength-to-weight ratio, and formability, makes it an ideal choice for components that need to perform in challenging environments. As technology advances and new applications emerge, the use of Gr12 titanium is likely to expand, further cementing its place as a crucial engineering material in modern industry.
