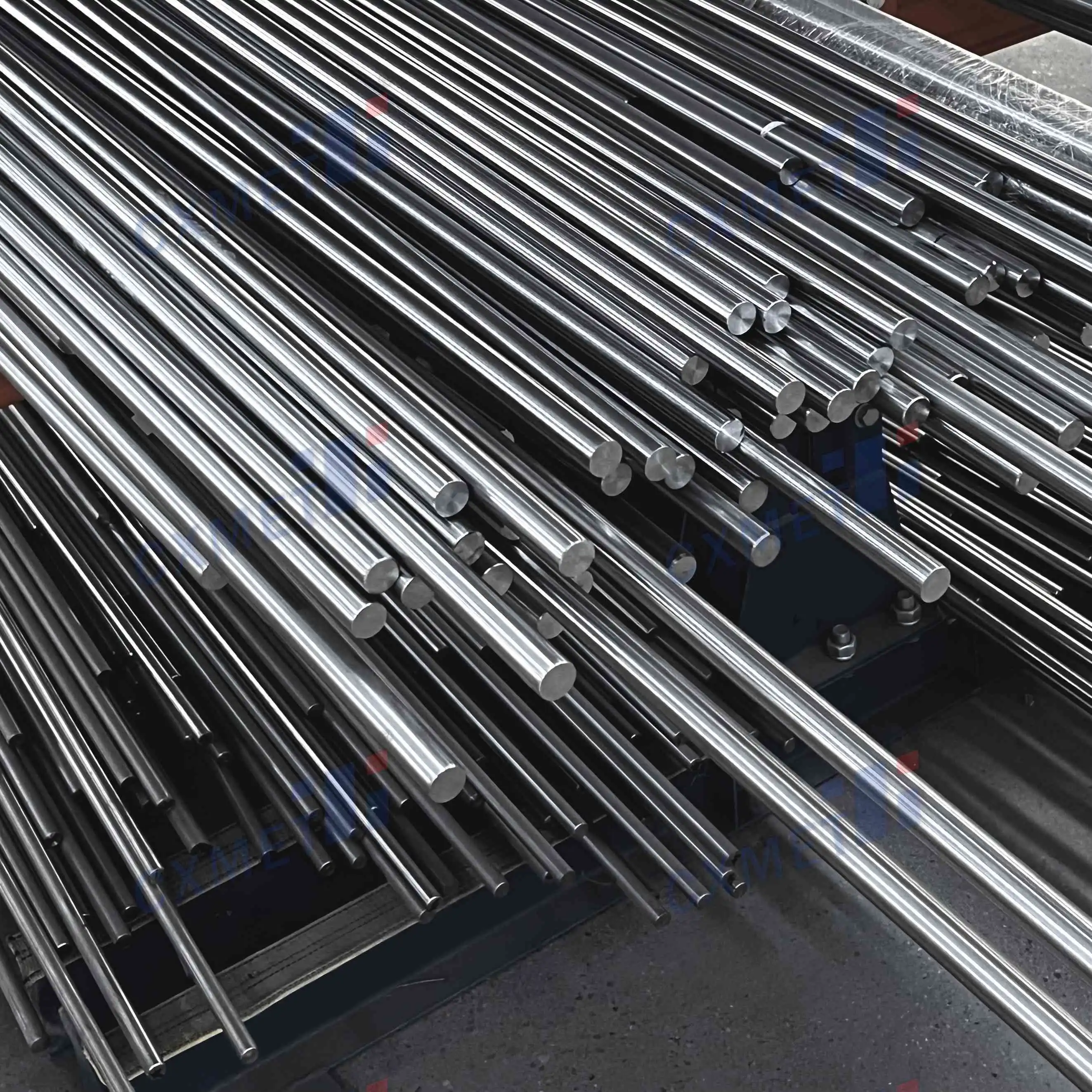

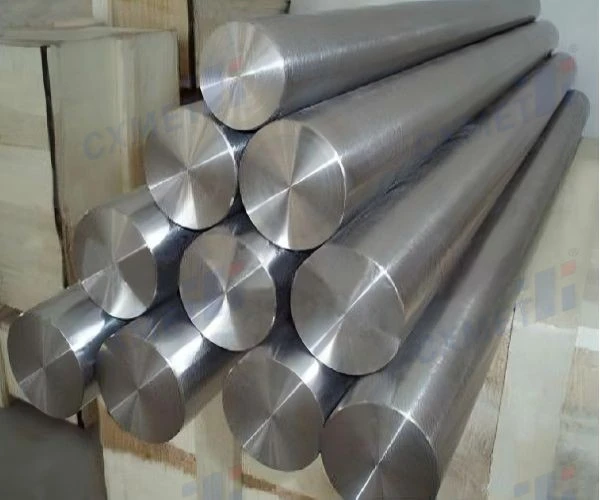

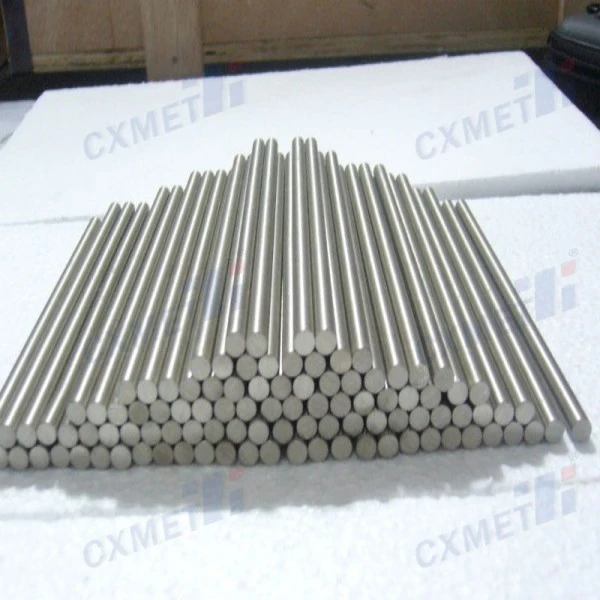

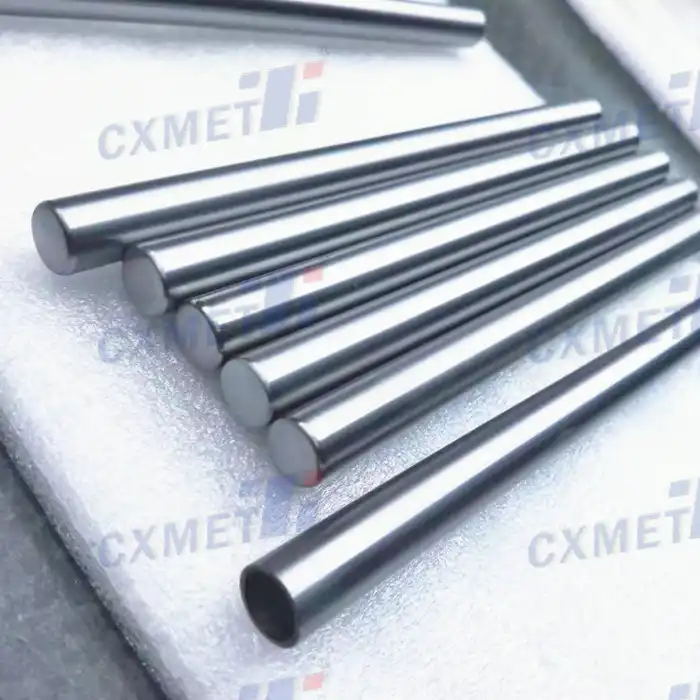

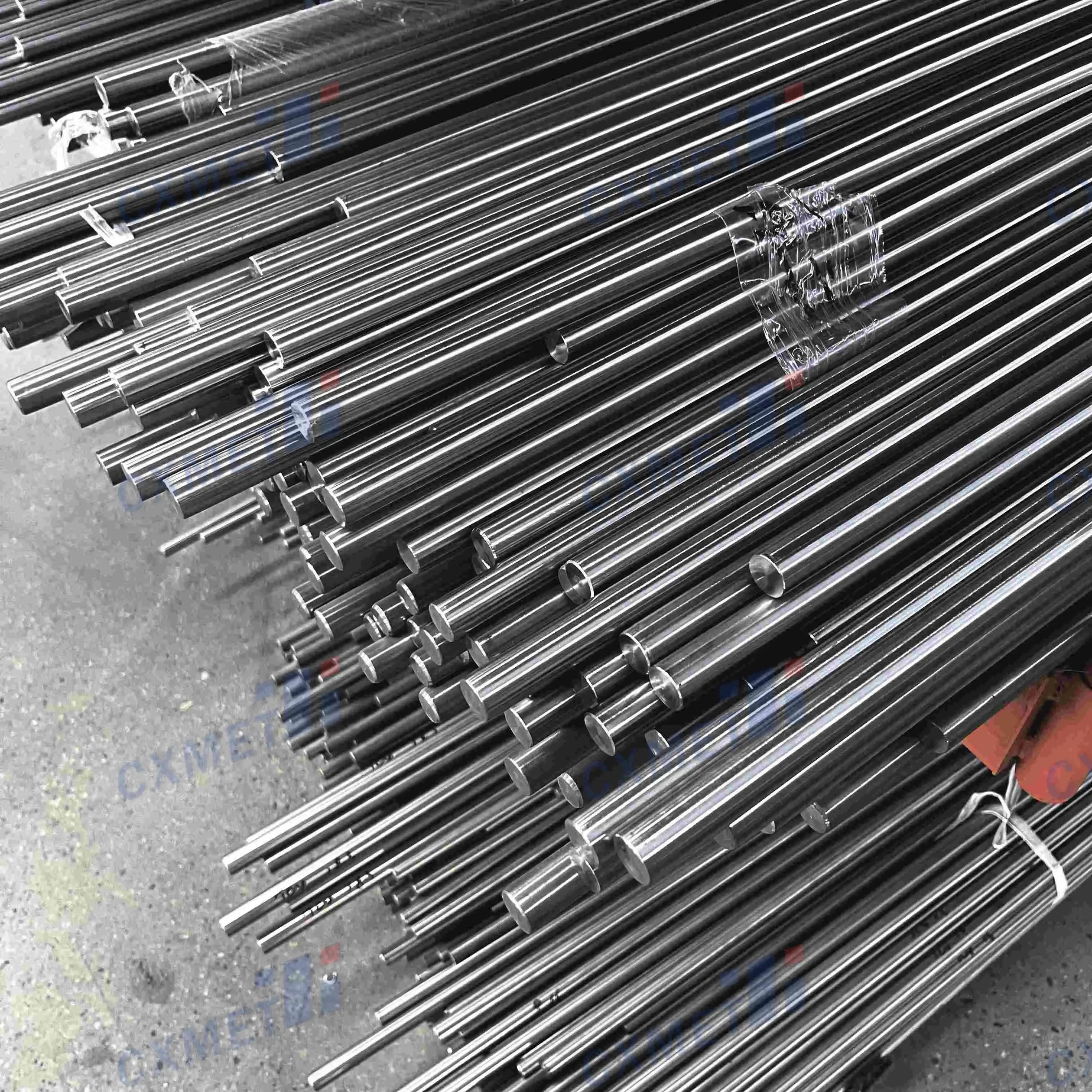

Gr23 Ti 6AL4V Eli Medical Titanium Bar is a high-performance titanium alloy widely used in the medical industry. This exceptional material combines the strength of titanium with enhanced biocompatibility, making it an ideal choice for various medical applications. The "Eli" designation stands for "Extra Low Interstitial," indicating that this alloy has reduced levels of impurities, which further improves its performance in medical settings. As we delve deeper into the uses and properties of this remarkable material, we'll explore its applications, advantages, and why it has become a preferred choice in the medical field.

How does Gr23 Ti 6AL4V Eli compare to other medical-grade materials?

Gr23 Ti 6AL4V Eli Medical Titanium Bar stands out among other medical-grade materials due to its exceptional combination of properties. When compared to other materials commonly used in medical applications, such as stainless steel, cobalt-chromium alloys, or even standard titanium alloys, Gr23 Ti 6AL4V Eli offers several advantages:

• Superior Strength-to-Weight Ratio: This alloy provides excellent strength while maintaining a low density, making it ideal for applications where weight reduction is crucial, such as in orthopedic implants or prosthetics.
• Enhanced Biocompatibility: The Extra Low Interstitial (ELI) grade ensures minimal risk of adverse reactions in the human body, reducing the likelihood of implant rejection or allergic responses.
• Corrosion Resistance: Gr23 Ti 6AL4V Eli exhibits exceptional resistance to corrosion, even in the harsh environment of the human body, ensuring long-term stability and performance of medical devices.
• Osseointegration: This material has been shown to promote better bone integration, making it particularly suitable for dental implants and orthopedic applications.
• Non-magnetic Properties: Unlike some stainless steel alloys, Gr23 Ti 6AL4V Eli is non-magnetic, allowing for its use in medical devices that must be compatible with MRI procedures.

Furthermore, when compared to standard Ti 6AL4V (Grade 5), the ELI version offers improved ductility and fracture toughness. This enhanced performance is particularly beneficial in applications where the material may be subjected to cyclic loading or where fatigue resistance is critical, such as in joint replacements or spinal implants.

The combination of these properties makes Gr23 Ti 6AL4V Eli Medical Titanium Bar a versatile and highly sought-after material in the medical industry. Its ability to meet the stringent requirements of various medical applications while offering improved performance over other materials has led to its widespread adoption in the field.

What are the main applications of Gr23 Ti 6AL4V Eli in the medical field?

Gr23 Ti 6AL4V Eli Medical Titanium Bar finds extensive use across a wide range of medical applications, owing to its exceptional properties and biocompatibility. Some of the main applications include:

• Orthopedic Implants: This alloy is widely used in the production of joint replacements, including hip, knee, and shoulder implants. Its high strength-to-weight ratio and excellent fatigue resistance make it ideal for these load-bearing applications.
• Dental Implants: The biocompatibility and osseointegration properties of Gr23 Ti 6AL4V Eli make it a preferred choice for dental implants, ensuring long-term stability and reduced risk of rejection.
• Spinal Implants: From spinal fusion cages to vertebral body replacements, this alloy is used in various spinal surgery applications due to its strength and ability to promote bone growth.
• Trauma Fixation Devices: Plates, screws, and intramedullary nails used in trauma surgery are often made from this material, benefiting from its strength and corrosion resistance.
• Cardiovascular Devices: Stents, heart valve components, and pacemaker casings utilize Gr23 Ti 6AL4V Eli for its biocompatibility and long-term stability in the body.
• Surgical Instruments: Many precision surgical tools are manufactured using this alloy, taking advantage of its strength, lightweight nature, and ability to maintain a sharp edge.
• Custom Prosthetics: The material's workability and strength make it suitable for creating custom prosthetic limbs and components.
• Craniomaxillofacial Implants: Reconstructive surgeries in the skull and facial areas often employ implants made from this alloy due to its ability to be shaped precisely and its long-term stability.

In each of these applications, the use of Gr23 Ti 6AL4V Eli Medical Titanium Bar contributes to improved patient outcomes, longer-lasting medical devices, and reduced risk of complications. The material's ability to be machined, 3D printed, or forged into complex shapes also allows for the creation of patient-specific implants and devices, further enhancing its utility in the medical field.

Moreover, ongoing research continues to explore new applications for this versatile material, including its potential use in drug delivery systems and advanced medical imaging equipment. As medical technology advances, the role of Gr23 Ti 6AL4V Eli in healthcare is likely to expand, driven by its unique combination of properties that address many of the challenges faced in modern medical device design and implementation.

How is Gr23 Ti 6AL4V Eli processed for medical use?

The processing of Gr23 Ti 6AL4V Eli Medical Titanium Bar for medical use involves a series of carefully controlled steps to ensure the highest quality and safety standards are met. The production and processing methods are crucial in maintaining the material's exceptional properties and biocompatibility. Here's an overview of the typical processing steps:

• Raw Material Selection: The process begins with the careful selection of high-purity raw materials, including titanium, aluminum, and vanadium. The "Extra Low Interstitial" designation requires stringent control of impurities such as oxygen, nitrogen, and carbon.
• Melting and Alloying: The raw materials are melted in a vacuum or inert atmosphere to prevent contamination. The alloying elements are added in precise quantities to achieve the desired composition of 6% aluminum and 4% vanadium, with the balance being titanium.
• Ingot Formation: The molten alloy is cast into ingots, which are then subjected to multiple remelting processes (such as vacuum arc remelting) to ensure homogeneity and remove any remaining impurities.
• Primary Processing: The ingots undergo primary processing techniques such as forging, rolling, or extrusion to form the basic shape of the titanium bar. This step also helps to refine the microstructure of the alloy.
• Heat Treatment: Various heat treatment processes are applied to optimize the mechanical properties of the alloy. This may include solution treatment and aging to achieve the desired balance of strength and ductility.
• Secondary Processing: The titanium bars may undergo additional processing steps such as machining, grinding, or polishing to achieve the final dimensions and surface finish required for specific medical applications.
• Surface Treatment: Depending on the intended use, the titanium bars may be subjected to surface treatments such as anodizing, passivation, or coating to enhance their properties or prepare them for specific medical applications.
• Sterilization: For medical use, the processed titanium bars or components made from them must be sterilized using appropriate methods that do not compromise the material's properties.
• Quality Control and Testing: Throughout the processing stages, rigorous quality control measures are implemented. This includes chemical analysis, mechanical testing, microstructural examination, and biocompatibility testing to ensure compliance with medical standards.

The processing of Gr23 Ti 6AL4V Eli for medical use also involves adherence to strict regulatory standards, such as those set by the FDA, ISO, and ASTM. These standards govern everything from the raw material composition to the final product specifications, ensuring consistency and safety across all medical applications.

Advanced manufacturing techniques, such as additive manufacturing (3D printing), are increasingly being used to process Gr23 Ti 6AL4V Eli for medical applications. These methods allow for the creation of complex, patient-specific implants and devices with optimized designs that were previously difficult or impossible to produce using traditional manufacturing methods.

The careful processing of Gr23 Ti 6AL4V Eli Medical Titanium Bar is essential in maintaining its unique properties and ensuring its suitability for use in the human body. By controlling every aspect of the production and processing, manufacturers can guarantee that the final product meets the exacting standards required for medical applications, ultimately contributing to improved patient outcomes and the advancement of medical technology.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References

1. ASTM International. (2021). ASTM F136 - Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications (UNS R56401).

2. Elias, C. N., Lima, J. H. C., Valiev, R., & Meyers, M. A. (2008). Biomedical applications of titanium and its alloys. JOM, 60(3), 46-49.

3. Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. (2009). Ti based biomaterials, the ultimate choice for orthopaedic implants – A review. Progress in Materials Science, 54(3), 397-425.

4. Lütjering, G., & Williams, J. C. (2007). Titanium (2nd ed.). Springer-Verlag Berlin Heidelberg.

5. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30-42.

6. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
