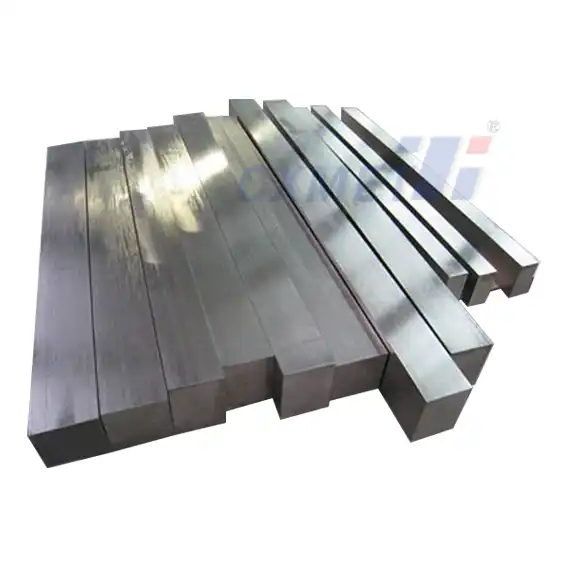

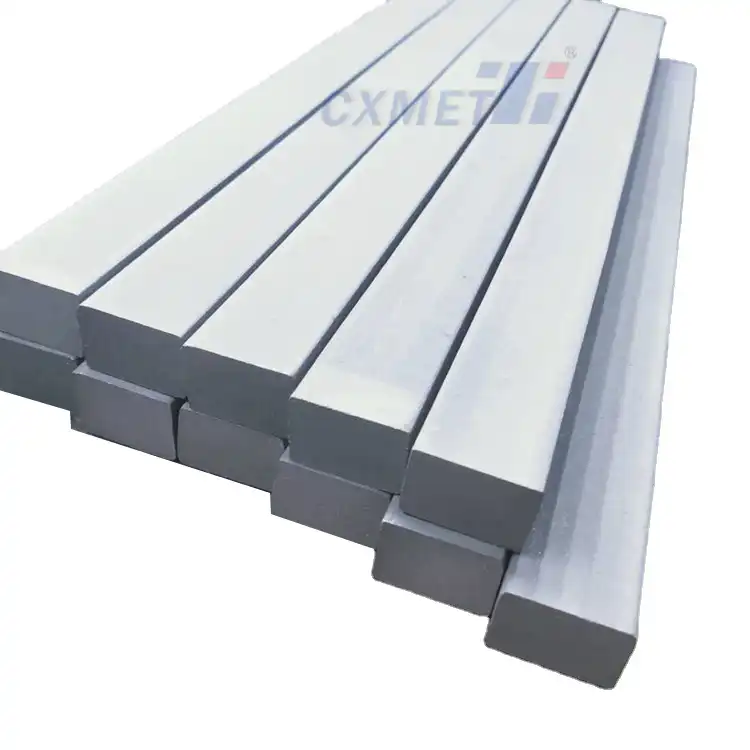

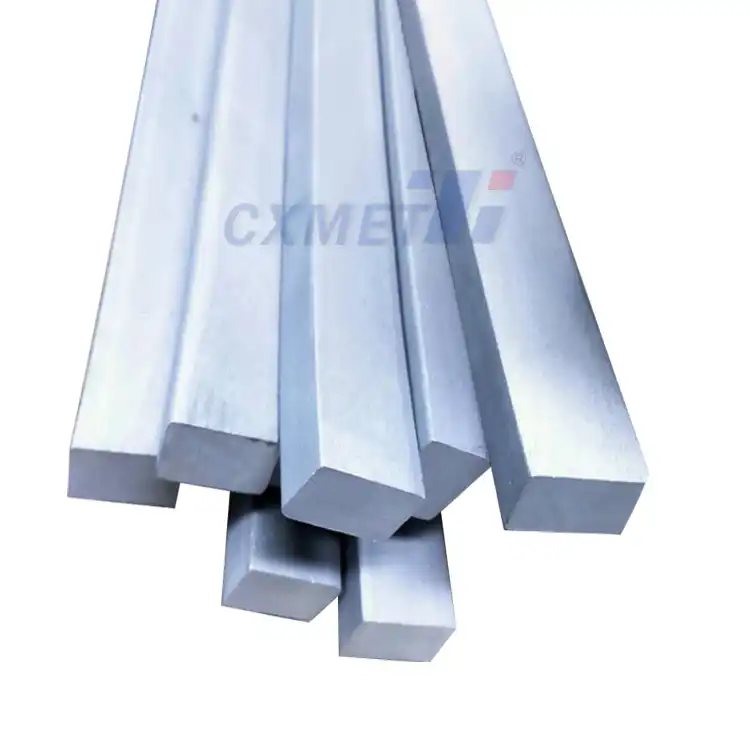

Gr12 Titanium Square Bar, also known as Grade 12 Titanium or Ti-0.3Mo-0.8Ni, is a high-performance titanium alloy known for its excellent corrosion resistance and mechanical properties. This alloy is particularly valued in industries requiring materials that can withstand harsh environments, such as chemical processing and marine applications. Understanding the chemical composition of Gr12 Titanium Square Bar is crucial for engineers and manufacturers to determine its suitability for specific applications and to ensure optimal performance in various conditions.

What are the key alloying elements in Gr12 Titanium?

The key alloying elements in Gr12 Titanium Square Bar play a crucial role in determining its properties and performance characteristics. The primary alloying elements in Grade 12 Titanium are molybdenum (Mo) and nickel (Ni), which are added to pure titanium to enhance its strength, corrosion resistance, and overall performance.

Molybdenum (Mo) is added at approximately 0.3% by weight. This element contributes significantly to the alloy's improved corrosion resistance, particularly in reducing acid environments. Molybdenum also helps to stabilize the beta phase of titanium, which can lead to improved strength and formability.

Nickel (Ni) is present at about 0.8% by weight. Nickel is known for its ability to improve the alloy's strength and toughness. It also contributes to the material's excellent resistance to stress corrosion cracking, making it suitable for applications in harsh chemical environments.

In addition to these primary alloying elements, Gr12 Titanium also contains small amounts of other elements, including:

• Carbon (C): Up to 0.08%
• Iron (Fe): Up to 0.3%
• Oxygen (O): Up to 0.25%
• Nitrogen (N): Up to 0.03%
• Hydrogen (H): Up to 0.015%

These minor elements, while present in small quantities, can still influence the alloy's properties. For example, carbon and iron can contribute to strengthening the material, while oxygen and nitrogen can affect its ductility and formability.

The precise control of these alloying elements during the manufacturing process is critical to ensure that the Gr12 Titanium Square Bar meets the required specifications and performs as expected in various applications. The combination of these elements results in an alloy that offers an excellent balance of strength, corrosion resistance, and fabricability, making it a versatile material for use in challenging environments.

How does the composition affect the properties of Gr12 Titanium?

The chemical composition of Gr12 Titanium Square Bar has a profound impact on its properties, making it a unique and valuable material in various industries. Understanding how each element contributes to the alloy's characteristics is essential for engineers and designers when selecting materials for specific applications.

Firstly, the addition of molybdenum and nickel significantly enhances the alloy's corrosion resistance. Gr12 Titanium exhibits exceptional resistance to reducing acids, oxidizing acids, and chloride solutions. This makes it particularly suitable for use in chemical processing equipment, marine environments, and applications involving exposure to corrosive substances. The presence of molybdenum, in particular, improves the alloy's resistance to crevice corrosion and pitting, which are common problems in harsh chemical environments.

The combination of alloying elements also contributes to the mechanical properties of Gr12 Titanium. While it maintains the relatively low density characteristic of titanium alloys (approximately 4.5 g/cm³), the addition of molybdenum and nickel results in improved strength compared to pure titanium. Gr12 Titanium typically has a yield strength of around 345 MPa (50 ksi) and an ultimate tensile strength of about 483 MPa (70 ksi). These strength levels, combined with good ductility, make the alloy suitable for structural applications in corrosive environments where both strength and corrosion resistance are required.

Another important property influenced by the composition is the alloy's heat resistance. Gr12 Titanium maintains its strength and corrosion resistance at elevated temperatures, making it suitable for applications involving exposure to moderately high temperatures. This temperature resistance is partly due to the stabilizing effect of molybdenum on the alloy's microstructure.

The presence of nickel in the composition also contributes to the alloy's improved weldability compared to some other titanium grades. This makes Gr12 Titanium easier to fabricate and join, which is advantageous in manufacturing processes and construction of complex structures.

It's worth noting that the precise control of minor elements such as oxygen, nitrogen, and carbon is crucial in maintaining the desired properties of Gr12 Titanium. For instance, excessive oxygen content can lead to increased strength but reduced ductility, while higher carbon levels can affect the alloy's corrosion resistance.

The unique combination of elements in Gr12 Titanium results in an alloy that offers a balance of properties, including:

• Excellent corrosion resistance in various chemical environments
• Good strength-to-weight ratio
• Improved weldability compared to some other titanium grades
• Resistance to stress corrosion cracking
• Suitable for use in marine environments
• Ability to maintain properties at moderately elevated temperatures

These properties make Gr12 Titanium Square Bar an ideal choice for applications in industries such as chemical processing, oil and gas, marine engineering, and pollution control equipment. The alloy's ability to withstand corrosive environments while maintaining good mechanical properties makes it a cost-effective solution for many challenging applications where other materials might fail.

What are the manufacturing processes for Gr12 Titanium Square Bar?

The manufacturing processes for Gr12 Titanium Square Bar are critical in ensuring that the final product meets the required specifications and exhibits the desired properties. The production of these bars involves several stages, each contributing to the overall quality and performance of the material.

The process typically begins with the creation of the titanium alloy itself. This involves carefully combining pure titanium with the alloying elements (primarily molybdenum and nickel) in precise proportions. The alloying process is usually carried out in a vacuum or inert atmosphere to prevent contamination and ensure the purity of the resulting material.

Once the alloy is created, it undergoes a series of forming and shaping processes to produce the square bar form. Some of the key manufacturing steps include:

1. Melting and Casting: The alloy is melted in a vacuum or inert atmosphere furnace and then cast into ingots. This step is crucial for achieving the desired chemical composition and initial structure of the material.
2. Hot Working: The cast ingots are then subjected to hot working processes such as forging or extrusion. These processes help to break down the cast structure, improve the material's uniformity, and begin shaping it into the desired form.
3. Heat Treatment: The worked material undergoes various heat treatment processes to achieve the desired microstructure and properties. This may include solution treatment and aging, which can significantly affect the strength and ductility of the alloy.
4. Cold Working: Depending on the final specifications, the material may undergo cold working processes to further refine its shape and improve its mechanical properties.
5. Machining: The square bar shape is typically achieved through precision machining processes. This may involve turning, milling, or grinding to achieve the required dimensions and surface finish.
6. Surface Treatment: The finished bars may undergo additional surface treatments such as pickling or passivation to enhance their corrosion resistance and prepare them for use.
7. Quality Control: Throughout the manufacturing process, rigorous quality control measures are implemented. This includes chemical analysis, mechanical testing, and dimensional inspections to ensure that the final product meets all specified requirements.

The manufacturing of Gr12 Titanium Square Bar requires specialized equipment and expertise due to titanium's high melting point and reactivity at elevated temperatures. Advanced techniques such as vacuum arc remelting (VAR) or electron beam melting (EBM) may be employed to ensure the purity and consistency of the alloy.

It's important to note that the specific manufacturing processes can vary depending on the producer and the intended application of the square bars. Some manufacturers may employ proprietary techniques to enhance certain properties or to optimize the production process.

The choice of manufacturing method can significantly impact the final properties of the Gr12 Titanium Square Bar. For example, the cooling rate during heat treatment can affect the microstructure and, consequently, the mechanical properties of the alloy. Similarly, the degree of cold working can influence the strength and ductility of the final product.

Manufacturers must carefully control each step of the process to ensure that the Gr12 Titanium Square Bar meet the required specifications, including dimensional tolerances, surface finish, and mechanical properties. This attention to detail in the manufacturing process is what allows Gr12 Titanium Square Bars to maintain their high performance in demanding applications across various industries.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References

1. ASTM International. (2021). ASTM B348 - Standard Specification for Titanium and Titanium Alloy Bars and Billets.
2. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and titanium alloys: fundamentals and applications. John Wiley & Sons.
3. Boyer, R., Welsch, G., & Collings, E. W. (Eds.). (1994). Materials properties handbook: titanium alloys. ASM international.
4. Lutjering, G., & Williams, J. C. (2007). Titanium (engineering materials and processes). Springer.
5. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced engineering materials, 5(6), 419-427.
6. Donachie, M. J. (2000). Titanium: a technical guide. ASM international.
7. Froes, F. H. (Ed.). (2015). Titanium: physical metallurgy, processing, and applications. ASM international.
8. Veiga, C., Davim, J. P., & Loureiro, A. J. R. (2012). Properties and applications of titanium alloys: a brief review. Rev. Adv. Mater. Sci, 32(2), 133-148.
9. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
10. Banerjee, D., & Williams, J. C. (2013). Perspectives on titanium science and technology. Acta Materialia, 61(3), 844-879.
