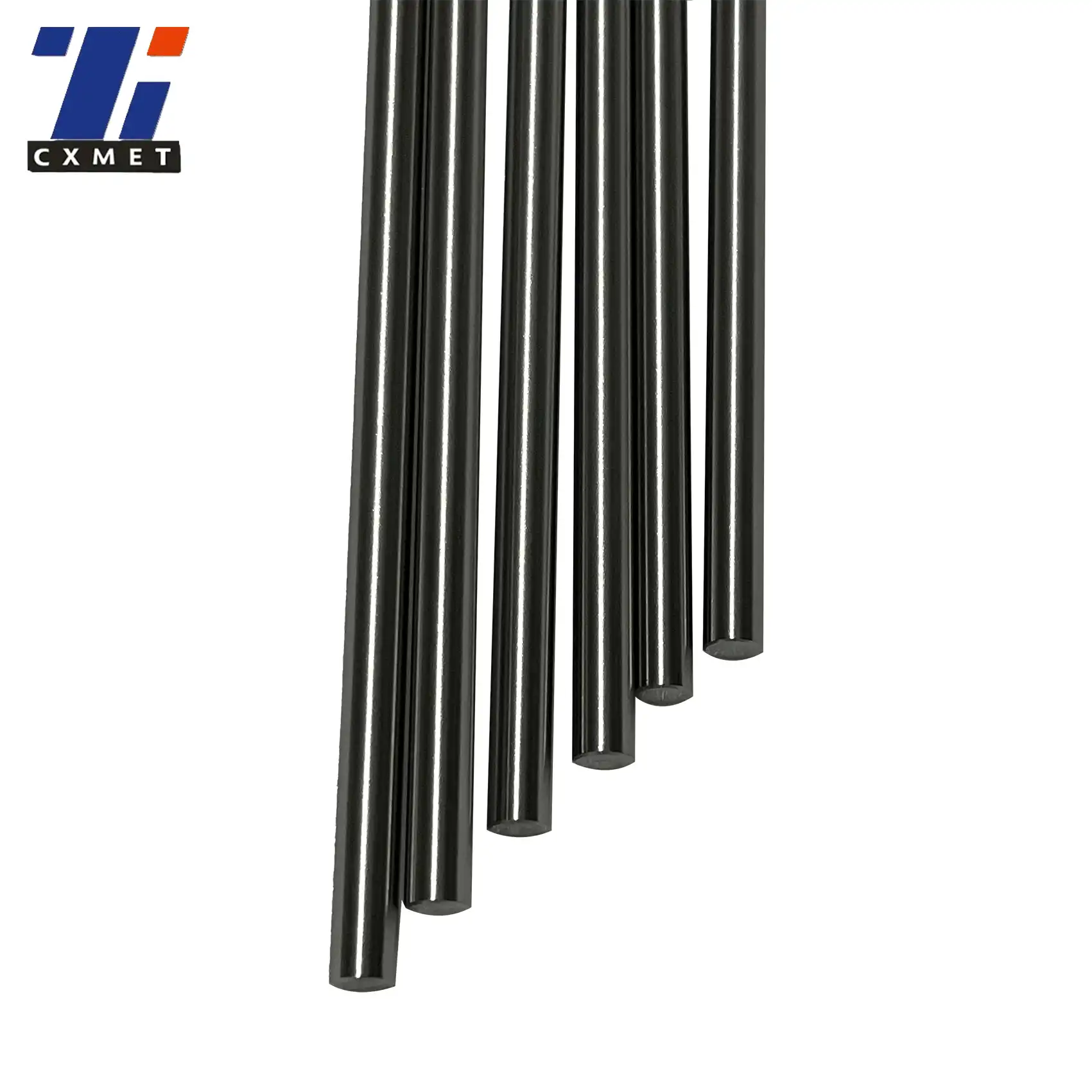

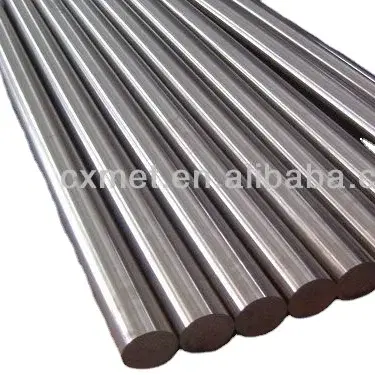

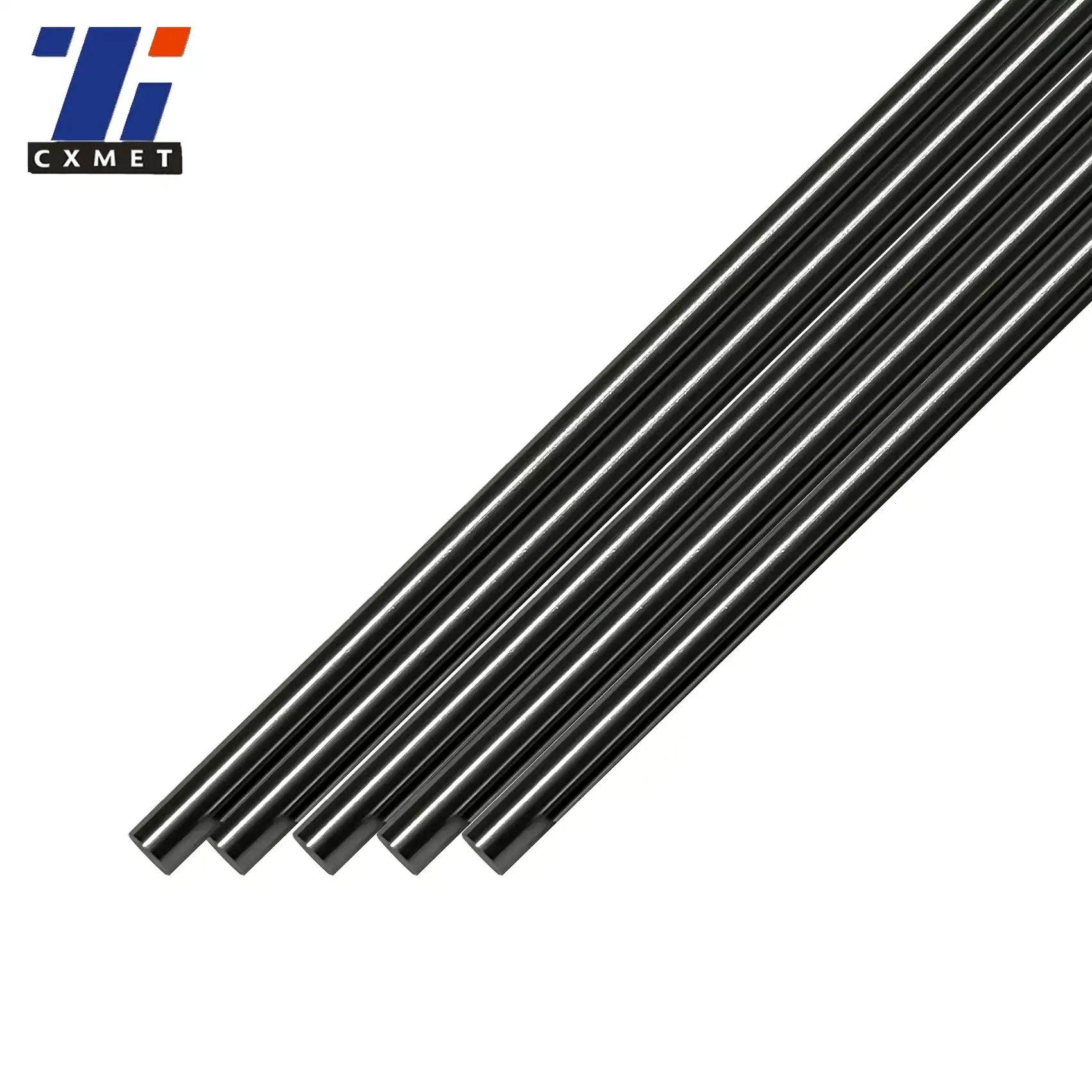

Zr702 zirconium rod is a high-purity zirconium alloy used in various industrial applications due to its excellent corrosion resistance, mechanical properties, and thermal stability. This material is particularly valuable in chemical processing, nuclear power generation, and medical implants. Zr702 contains a minimum of 99.2% zirconium, with small amounts of hafnium, iron, and other trace elements.

What are the properties of Zr702 zirconium rod?

Zr702 zirconium rod possesses a unique combination of properties that make it highly desirable for various applications. Some of the key properties include:

• Excellent corrosion resistance: Zr702 exhibits exceptional resistance to corrosion in many aggressive environments, including strong acids, alkalis, and salt solutions. This property makes it ideal for use in chemical processing equipment, heat exchangers, and other corrosive environments.
• High melting point: With a melting point of approximately 1,855°C (3,371°F), Zr702 maintains its structural integrity at elevated temperatures, making it suitable for high-temperature applications.
• Low neutron absorption cross-section: Zr702 has a very low neutron absorption cross-section, which is crucial for its use in nuclear reactors. This property allows neutrons to pass through the material with minimal interference, enhancing the efficiency of nuclear reactions.
• Biocompatibility: Zr702 is highly biocompatible, making it suitable for medical implants and prosthetics. Its inert nature and resistance to bodily fluids contribute to its long-term stability in the human body.
• Mechanical strength: While not as strong as some other metals, Zr702 offers a good balance of strength and ductility, making it suitable for various structural applications.
• Thermal properties: Zr702 has relatively low thermal conductivity and a low coefficient of thermal expansion, which can be advantageous in certain applications where thermal stability is important.

These properties make Zr702 zirconium rod an excellent choice for applications requiring high corrosion resistance, thermal stability, and biocompatibility. Its unique combination of characteristics has led to its widespread use in industries such as chemical processing, nuclear power generation, and medical technology.

How is Zr702 zirconium rod manufactured?

The manufacturing process of Zr702 zirconium rod involves several complex steps to ensure the high purity and desired properties of the final product. The process typically includes the following stages:

1. Zircon sand extraction: The process begins with the extraction of zircon sand (ZrSiO4) from mineral deposits. This naturally occurring mineral is the primary source of zirconium.
2. Chlorination: The zircon sand is converted into zirconium tetrachloride (ZrCl4) through a high-temperature chlorination process. This step helps to separate zirconium from other elements present in the sand.
3. Purification: The zirconium tetrachloride undergoes multiple purification steps to remove impurities and achieve the high purity required for Zr702 grade material. This may involve distillation, crystallization, and other chemical processes.
4. Reduction: The purified zirconium tetrachloride is then reduced to metallic zirconium through a process called the Kroll process. This involves reacting the chloride with magnesium at high temperatures, resulting in zirconium sponge.
5. Melting and alloying: The zirconium sponge is melted in a vacuum or inert atmosphere furnace. During this stage, small amounts of alloying elements may be added to achieve the desired composition of Zr702.
6. Ingot formation: The molten zirconium is cast into ingots, which serve as the starting material for further processing.
7. Hot working: The ingots are subjected to hot working processes such as forging or extrusion to break down the cast structure and improve the material's properties.
8. Cold working and heat treatment: The material may undergo cold working processes like drawing or rolling to achieve the desired rod dimensions. Heat treatments may be applied to optimize the microstructure and properties.
9. Surface finishing: The rods may be ground, polished, or undergo other surface treatments to achieve the required surface finish and dimensional accuracy.
10. Quality control: Throughout the manufacturing process, rigorous quality control measures are implemented to ensure that the Zr702 zirconium rod meets the required specifications and standards.

The manufacturing process of Zr702 zirconium rod is carefully controlled to maintain the high purity and specific properties required for its various applications. Advanced technologies and strict quality control measures are employed to ensure consistency and reliability in the final product.

What are the applications of Zr702 zirconium rod?

Zr702 zirconium rod finds applications in various industries due to its unique properties. Some of the key applications include:

1. Chemical processing:
   • Reactors and vessels for handling corrosive chemicals
   • Heat exchangers in aggressive environments
   • Piping systems for transporting corrosive fluids
   • Pump components and impellers
2. Nuclear power industry:
   • Fuel rod cladding in nuclear reactors
   • Structural components in reactor cores
   • Control rod guide tubes
   • Nuclear waste storage containers
3. Medical and dental applications:
   • Orthopedic implants
   • Dental implants and prosthetics
   • Surgical instruments
   • MRI-compatible medical devices
4. Aerospace industry:
   • Components for spacecraft and satellites
   • Heat shields for reentry vehicles
   • Fasteners and structural elements in aircraft
5. Electronics:
   • Sputtering targets for thin film deposition
   • Getters in vacuum tubes
   • Superconducting wire sheaths
6. Optical applications:
   • Lens coatings
   • Optical fiber connectors
   • Precision optical components

The versatility of Zr702 zirconium rod in these applications stems from its excellent corrosion resistance, biocompatibility, and thermal properties. In chemical processing, it withstands harsh environments that would quickly degrade other materials. In nuclear applications, its low neutron absorption cross-section and resistance to radiation damage make it invaluable for reactor components.

The biocompatibility of Zr702 has led to its increased use in medical implants, where it provides long-term stability and resistance to degradation in the human body. In aerospace applications, its high strength-to-weight ratio and thermal properties make it suitable for critical components in extreme environments.

As technology advances, new applications for Zr702 zirconium rod continue to emerge. Researchers and engineers are exploring its potential in areas such as hydrogen storage, fuel cell technology, and advanced materials for extreme environments. The unique properties of this material ensure its continued relevance and importance in various high-tech industries.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References:

1. ASM International. (2006). ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials.
2. Schemel, J. H. (1977). ASTM Manual on Zirconium and Hafnium. ASTM International.
3. Rudling, P., & Wikmark, G. (2018). Nuclear Fuel Performance and Technology. Woodhead Publishing.
4. Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications. John Wiley & Sons.
5. Garzarolli, F., Cox, B., & Rudling, P. (2015). Corrosion of Zirconium Alloys in Nuclear Power Plants. IAEA-TECDOC-1649.
6. Niinomi, M. (2019). Metals for Biomedical Devices. Woodhead Publishing.
7. Mallick, P. K. (2010). Materials, Design and Manufacturing for Lightweight Vehicles. Woodhead Publishing.
8. Gupta, C. K., & Sathiyamoorthy, D. (2013). Fluid Bed Technology in Materials Processing. CRC Press.
9. Totten, G. E., & MacKenzie, D. S. (Eds.). (2003). Handbook of Aluminum: Volume 2: Alloy Production and Materials Manufacturing. CRC Press.
10. Comprehensive Nuclear Materials. (2012). Elsevier.
