Ti-6AL-11Nb Titanium Alloy Wire is a versatile and high-performance material widely used in various industries, particularly in medical and aerospace applications. This alloy combines the excellent properties of titanium with enhanced biocompatibility and mechanical strength. When it comes to the availability of sizes and diameters for Ti-6AL-7Nb titanium alloy wire, there is a wide range of options to suit different applications and manufacturing processes.

How does Ti-6AL-7Nb titanium alloy wire compare to other titanium alloys?

Ti-6AL-11Nb Titanium Alloy Wire is a unique material that offers several advantages over other titanium alloys. This alloy was developed as an alternative to the widely used Ti-6Al-4V alloy, particularly for biomedical applications. The key difference lies in the replacement of vanadium with niobium, which enhances biocompatibility and reduces potential toxicity concerns.

Compared to other titanium alloys, Ti-6AL-7Nb exhibits excellent mechanical properties, including high strength-to-weight ratio, good fatigue resistance, and superior corrosion resistance. Its tensile strength is comparable to that of Ti-6Al-4V, typically ranging from 900 to 1050 MPa, depending on the heat treatment and processing conditions. The elastic modulus of Ti-6AL-7Nb is slightly lower than that of Ti-6Al-4V, which can be advantageous in certain biomedical applications where a closer match to bone stiffness is desired.

One of the standout features of Ti-6AL-7Nb is its excellent biocompatibility. The absence of vanadium, which has been associated with potential long-term health concerns, makes this alloy particularly suitable for implants and medical devices. Additionally, the presence of niobium contributes to improved osseointegration, which is crucial for the success of orthopedic and dental implants.

In terms of corrosion resistance, Ti-6AL-7Nb performs exceptionally well in various environments, including bodily fluids and seawater. This property, combined with its high strength and low density, makes it an attractive option for aerospace and marine applications as well.

While Ti-6AL-7Nb shares many similarities with Ti-6Al-4V in terms of machinability and formability, it may require slightly different processing parameters due to its unique composition. This can include adjustments in heat treatment cycles, welding procedures, and machining speeds to optimize the material's performance and ensure consistent quality in the final product.

What are the common applications for Ti-6AL-7Nb titanium alloy wire?

Ti-6AL-11Nb Titanium Alloy Wire finds applications in a wide range of industries, with its unique properties making it particularly valuable in specific sectors. The most prominent applications include:

1. Biomedical Implants: Ti-6AL-7Nb is extensively used in the production of orthopedic and dental implants. Its biocompatibility, high strength, and ability to osseointegrate make it ideal for long-term implantation in the human body. Common applications include hip and knee replacements, spinal fusion cages, and dental implants. The wire form of this alloy is often used in the manufacturing of small, intricate components or as a raw material for additive manufacturing of custom implants.

2. Aerospace Industry: While not as widespread as Ti-6Al-4V in aerospace applications, Ti-6AL-7Nb wire is used in certain specialized components where its unique properties offer advantages. This can include fasteners, springs, and other small parts that require high strength and excellent corrosion resistance in challenging environments.

3. Marine Applications: The superior corrosion resistance of Ti-6AL-7Nb makes it suitable for use in marine environments. Wire forms of this alloy can be used in the production of components for offshore structures, underwater vehicles, and marine research equipment.

4. Chemical Processing: In industries where corrosion resistance is paramount, Ti-6AL-7Nb wire can be used to manufacture components for chemical processing equipment, such as heat exchangers, valves, and pumps.

5. Sports and Leisure: The high strength-to-weight ratio of Ti-6AL-7Nb makes it attractive for high-performance sporting goods. While not as common as other titanium alloys in this sector, it can be used in specialized applications where biocompatibility is a concern, such as in prosthetics for athletes.

6. Jewelry and Decorative Items: The hypoallergenic nature of Ti-6AL-7Nb, combined with its durability and aesthetic appeal, makes it suitable for use in body jewelry and certain decorative applications.

7. Research and Development: Ti-6AL-7Nb wire is often used in research settings to develop new medical devices, explore novel manufacturing techniques, and investigate potential new applications for this versatile alloy.

In each of these applications, the specific size and diameter of the Ti-6AL-7Nb wire used can vary significantly depending on the requirements of the final product. Manufacturers typically offer a range of sizes to accommodate diverse needs across these industries.

What are the manufacturing processes for producing Ti-6AL-7Nb titanium alloy wire?

The production of Ti-6AL-11Nb Titanium Alloy Wire involves several sophisticated manufacturing processes to ensure the final product meets the required specifications and quality standards. These processes are designed to leverage the unique properties of the alloy while overcoming the challenges associated with working with titanium-based materials.

1. Alloy Preparation: The process begins with the careful preparation of the Ti-6AL-7Nb alloy. This involves precisely measuring and mixing the constituent elements - titanium (Ti), aluminum (Al), and niobium (Nb) - in the correct proportions. The exact composition is critical to achieving the desired properties in the final wire product.

2. Melting and Ingot Formation: The mixed raw materials are then melted in a vacuum or inert atmosphere to prevent contamination and oxidation. This is typically done using vacuum arc remelting (VAR) or electron beam melting (EBM) techniques. The molten alloy is then cast into ingots, which serve as the starting material for wire production.

3. Hot Working: The ingots undergo hot working processes such as forging or extrusion to break down the cast structure and improve the material's properties. This step helps in achieving a more uniform microstructure and enhances the mechanical properties of the alloy.

4. Rod Production: The hot-worked material is then further processed to create rods of the desired diameter. This may involve additional hot working steps or a combination of hot and cold working processes.

5. Wire Drawing: The rod is then drawn into wire through a series of progressively smaller dies. This cold working process significantly reduces the diameter of the material while increasing its length. The wire drawing process is crucial in achieving the desired final diameter and mechanical properties of the Ti-6AL-7Nb wire.

6. Intermediate Annealing: Depending on the final wire size and property requirements, intermediate annealing steps may be necessary during the wire drawing process. Annealing helps relieve internal stresses and can be used to control the final mechanical properties of the wire.

7. Surface Treatment: After reaching the final diameter, the wire may undergo surface treatments such as pickling or electropolishing to remove any surface oxides and improve the surface finish.

8. Heat Treatment: A final heat treatment may be applied to optimize the microstructure and mechanical properties of the wire. The specific heat treatment parameters depend on the intended application and desired properties.

9. Quality Control: Throughout the manufacturing process, rigorous quality control measures are implemented. This includes regular inspections, dimensional checks, and mechanical testing to ensure the wire meets the required specifications.

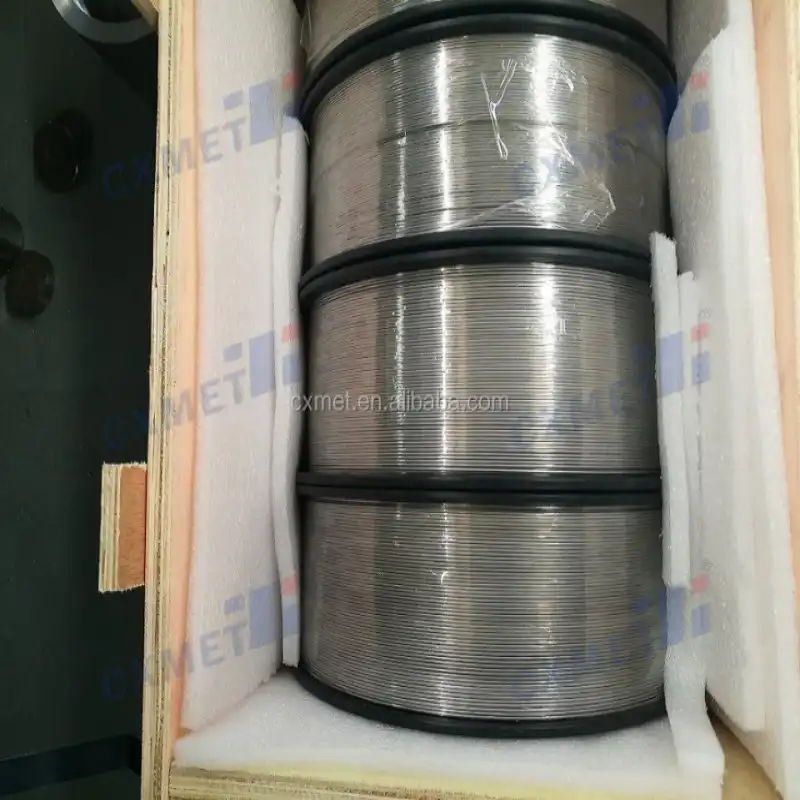

10. Packaging and Storage: The finished Ti-6AL-7Nb wire is carefully packaged to protect it from damage and contamination. Proper storage conditions are essential to maintain the wire's properties and prevent surface oxidation.

The manufacturing of Ti-6AL-11Nb Titanium Alloy Wire requires specialized equipment and expertise due to the material's high strength and reactivity. The process must be carefully controlled to ensure consistency in composition, microstructure, and properties throughout the length of the wire. Advanced techniques such as in-line monitoring and process automation are often employed to maintain high quality standards and meet the stringent requirements of industries like aerospace and medical device manufacturing.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.

References

1. Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. (2009). Ti based biomaterials, the ultimate choice for orthopaedic implants – A review. Progress in Materials Science, 54(3), 397-425.
2. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30-42.
3. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
4. Elias, C. N., Lima, J. H. C., Valiev, R., & Meyers, M. A. (2008). Biomedical applications of titanium and its alloys. Jom, 60(3), 46-49.
5. Sidambe, A. T. (2014). Biocompatibility of advanced manufactured titanium implants—A review. Materials, 7(12), 8168-8188.
6. Cui, C., Hu, B. M., Zhao, L., & Liu, S. (2011). Titanium alloy production technology, market prospects and industry development. Materials & Design, 32(3), 1684-1691.
7. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
8. Lütjering, G., & Williams, J. C. (2007). Titanium. Springer Science & Business Media.
9. Donachie, M. J. (2000). Titanium: A Technical Guide. ASM International.
10. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
