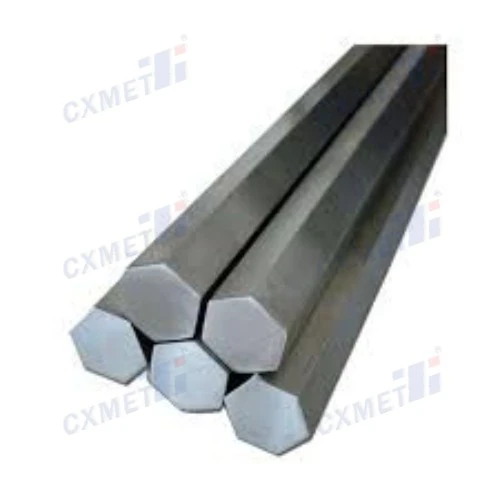

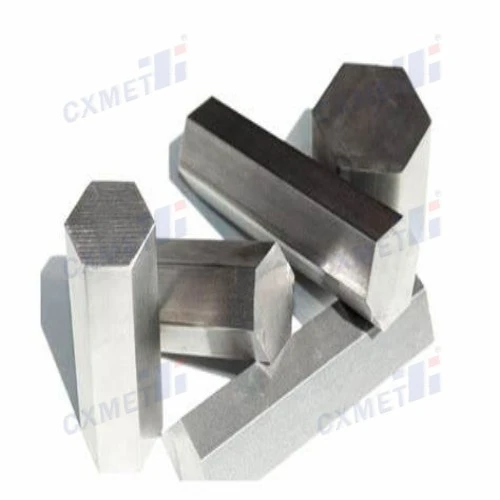

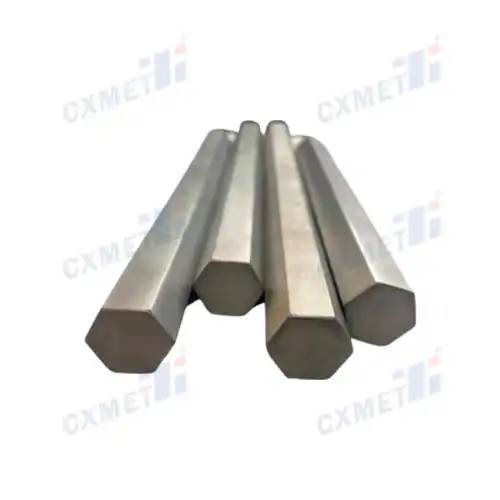

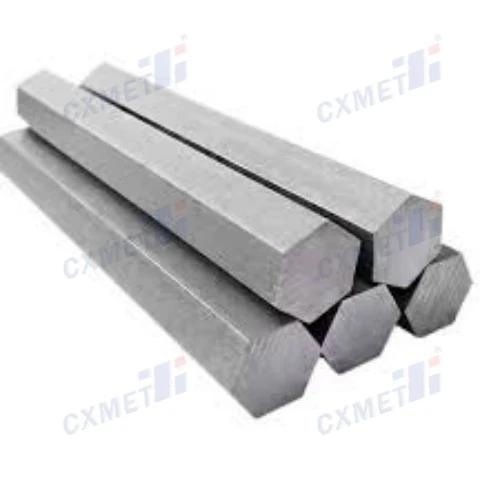

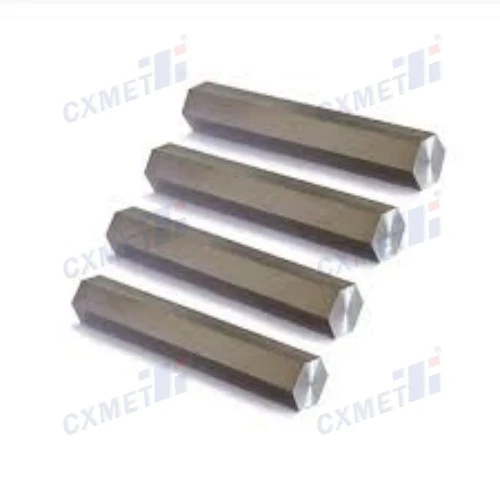

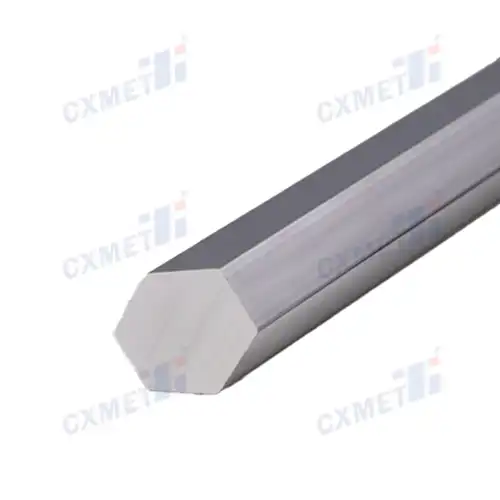

Titanium Hex Bar For Sale are a popular choice in various industries due to their exceptional strength-to-weight ratio, corrosion resistance, and high-temperature performance. These hexagonal-shaped bars are available in a wide range of sizes and grades to suit different applications. This article will explore the various options available when purchasing titanium hex bars, including common sizes, grades, and their specific uses.

What are the most common sizes of titanium hex bars?

Titanium Hex Bar For Sale are available in a variety of sizes to accommodate different engineering and manufacturing needs. The size of a hex bar is typically measured across the flats, which is the distance between two parallel sides of the hexagon. Common sizes range from as small as 1/4 inch (6.35 mm) up to 4 inches (101.6 mm) or larger, depending on the manufacturer and specific requirements.

Some of the most frequently used sizes for titanium hex bars include:

• 1/4 inch (6.35 mm)
• 3/8 inch (9.53 mm)
• 1/2 inch (12.7 mm)
• 5/8 inch (15.88 mm)
• 3/4 inch (19.05 mm)
• 1 inch (25.4 mm)
• 1-1/4 inch (31.75 mm)
• 1-1/2 inch (38.1 mm)
• 2 inches (50.8 mm)

It's important to note that while these are common sizes, custom sizes can often be manufactured to meet specific project requirements. The availability of sizes may vary depending on the supplier and the grade of titanium being used.

When selecting the appropriate size for a titanium hex bar, several factors should be considered:

1. Application requirements: The intended use of the hex bar will dictate the size needed. For example, smaller sizes may be suitable for precision components, while larger sizes might be necessary for structural applications.
2. Load-bearing capacity: The size of the hex bar will directly impact its strength and load-bearing capabilities. Larger sizes generally offer greater strength and rigidity.
3. Weight considerations: Titanium is known for its high strength-to-weight ratio, but larger sizes will still be heavier. In applications where weight is a critical factor, selecting the appropriate size to balance strength and weight is essential.
4. Machining requirements: If the hex bar will undergo further machining or fabrication, consider the amount of material needed for the final product and any additional processing steps.
5. Cost: Larger sizes of titanium hex bars are generally more expensive due to the increased amount of material used. Balancing performance requirements with budget constraints is important when selecting the appropriate size.

How do different grades of titanium hex bars compare in terms of properties and applications?

Titanium Hex Bar For Sale are available in various grades, each with its own set of properties and characteristics that make them suitable for specific applications. The most common grades of titanium used for hex bars are classified into four main categories: commercially pure (CP) titanium, alpha alloys, alpha-beta alloys, and beta alloys. Let's explore these grades and their properties in more detail:

1. Commercially Pure (CP) Titanium

CP titanium grades are unalloyed and offer excellent corrosion resistance and formability. They are available in different grades based on their oxygen content, which affects their strength. Common CP grades include:

• Grade 1: The most ductile grade with the lowest strength
• Grade 2: The most widely used CP grade, offering a good balance of strength and ductility
• Grade 3: Higher strength than Grade 2, but with reduced ductility
• Grade 4: The highest strength CP grade, but with the lowest ductility

Applications for CP titanium hex bars include chemical processing equipment, marine applications, and medical implants.

2. Alpha Alloys

Alpha alloys contain elements such as aluminum and tin, which stabilize the alpha phase of titanium. These alloys offer good strength, toughness, and creep resistance at high temperatures. The most common alpha alloy is:

• Grade 5 (Ti-6Al-4V): This is the most widely used titanium alloy, offering an excellent combination of strength, light weight, and corrosion resistance.

Alpha alloy titanium hex bars are often used in aerospace applications, gas turbine engines, and high-performance automotive parts.

3. Alpha-Beta Alloys

Alpha-beta alloys contain both alpha and beta stabilizing elements, providing a balance of properties. These alloys can be heat-treated to achieve higher strengths. Common alpha-beta alloys include:

• Grade 6 (Ti-5Al-2.5Sn): Offers good weldability and excellent mechanical properties at cryogenic temperatures
• Grade 23 (Ti-6Al-4V ELI): An extra-low interstitial version of Grade 5, offering improved ductility and fracture toughness

Alpha-beta titanium hex bars are used in aerospace structures, marine applications, and medical implants.

4. Beta Alloys

Beta alloys contain higher amounts of beta stabilizing elements, resulting in improved hardenability and higher strength-to-weight ratios. Some beta alloys used for hex bars include:

• Ti-10V-2Fe-3Al: Offers high strength and good fatigue properties
• Ti-15V-3Cr-3Al-3Sn: Provides excellent formability and high strength after heat treatment

Beta titanium alloy hex bars are used in high-strength aerospace applications, sports equipment, and specialized industrial components.

When selecting a titanium grade for hex bars, consider the following factors:

1. Strength requirements: Different grades offer varying levels of tensile and yield strength.
2. Corrosion resistance: While all titanium grades offer good corrosion resistance, some perform better in specific environments.
3. Temperature performance: Consider the operating temperature range for your application, as some grades perform better at high or low temperatures.
4. Weldability: If the hex bars will be welded, choose a grade with good weldability characteristics.
5. Cost: Higher-performance alloys generally come at a higher cost, so balance performance requirements with budget constraints.

What factors should be considered when choosing titanium hex bars for specific applications?

Selecting the right Titanium Hex Bar For Sale for a specific application requires careful consideration of various factors to ensure optimal performance, cost-effectiveness, and longevity. Here are the key factors to consider when choosing titanium hex bars:

1. Mechanical Properties

The mechanical properties of titanium hex bars play a crucial role in their performance and suitability for specific applications. Consider the following properties:

• Tensile strength: The maximum stress the material can withstand before failure
• Yield strength: The stress at which the material begins to deform plastically
• Elongation: The ability of the material to deform without breaking
• Hardness: The material's resistance to indentation and wear
• Fatigue strength: The ability to withstand cyclic loading

Different titanium grades offer varying levels of these properties, so it's essential to match them with the requirements of your application.

2. Environmental Conditions

The environment in which the titanium hex bar will be used can significantly impact its performance and longevity. Consider factors such as:

• Temperature range: Some titanium grades perform better at high or low temperatures
• Corrosive environments: While titanium is generally corrosion-resistant, certain grades may be more suitable for specific corrosive media
• Exposure to chemicals: Consider the compatibility of the titanium grade with any chemicals it may come into contact with
• UV exposure: For outdoor applications, consider the material's resistance to UV degradation

3. Fabrication Requirements

The manufacturing process and any post-processing steps should be considered when selecting titanium hex bars. Factors to consider include:

• Machinability: Some grades are easier to machine than others, which can impact production costs and time
• Weldability: If the hex bars will be welded, choose a grade with good weldability characteristics
• Formability: For applications requiring bending or shaping, consider grades with better formability
• Heat treatment: Some grades can be heat-treated to achieve specific properties

4. Weight Considerations

Titanium's high strength-to-weight ratio is one of its key advantages. When selecting hex bars, consider:

• The overall weight of the component or structure
• Weight distribution and balance in the final application
• Potential weight savings compared to alternative materials

5. Cost and Availability

While titanium offers excellent properties, it can be more expensive than some alternative materials. Consider the following:

• Material cost: Higher-performance alloys generally come at a higher price
• Processing costs: Some grades may require additional processing steps, increasing overall costs
• Availability: Ensure that the selected grade and size are readily available to avoid production delays
• Long-term cost savings: Consider potential savings in maintenance, replacement, or energy efficiency due to titanium's properties

6. Regulatory and Industry Standards

Depending on the application, there may be specific standards or regulations that dictate the use of certain titanium grades or sizes. Consider:

• Industry-specific standards (e.g., aerospace, medical, or marine requirements)
• Government regulations
• Quality certifications

7. Design Flexibility

The hexagonal shape of titanium hex bars offers certain design advantages. Consider how this shape can be utilized in your application, such as:

• Ease of gripping or clamping
• Aesthetic considerations in visible applications
• Potential for interlocking or nesting in structural designs

By carefully considering these factors, engineers and designers can select the most appropriate titanium hex bar for their specific application, ensuring optimal performance, cost-effectiveness, and longevity of the final product.

Conclusion

Titanium Hex Bar For Sale offer a versatile and high-performance material option for various industries and applications. With a wide range of sizes and grades available, it's possible to find the right titanium hex bar to meet specific project requirements. By understanding the different sizes, grades, and factors that influence selection, engineers and designers can make informed decisions to optimize their products and structures.

At SHAANXI CXMET TECHNOLOGY CO., LTD, we take pride in our extensive product range, which caters to diverse customer needs. Our company is equipped with outstanding production and processing capabilities, ensuring the high quality and precision of our products. We are committed to innovation and continuously strive to develop new products, keeping us at the forefront of our industry. With leading technological development capabilities, we are able to adapt and evolve in a rapidly changing market. Furthermore, we offer customized solutions to meet the specific requirements of our clients. If you are interested in our products or wish to learn more about the intricate details of our offerings, please do not hesitate to contact us at sales@cxmet.com. Our team is always ready to assist you.
