China OEM ASTM B338 titanium tube manufacturer supplier factory

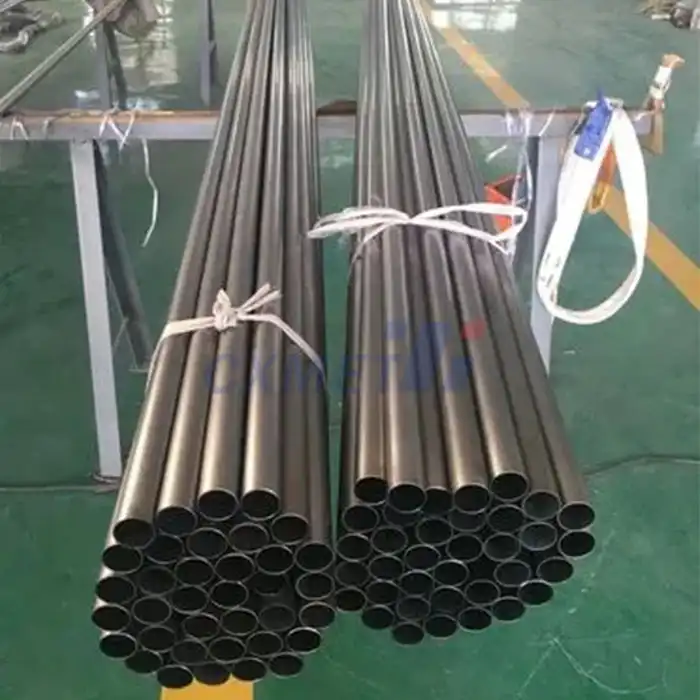

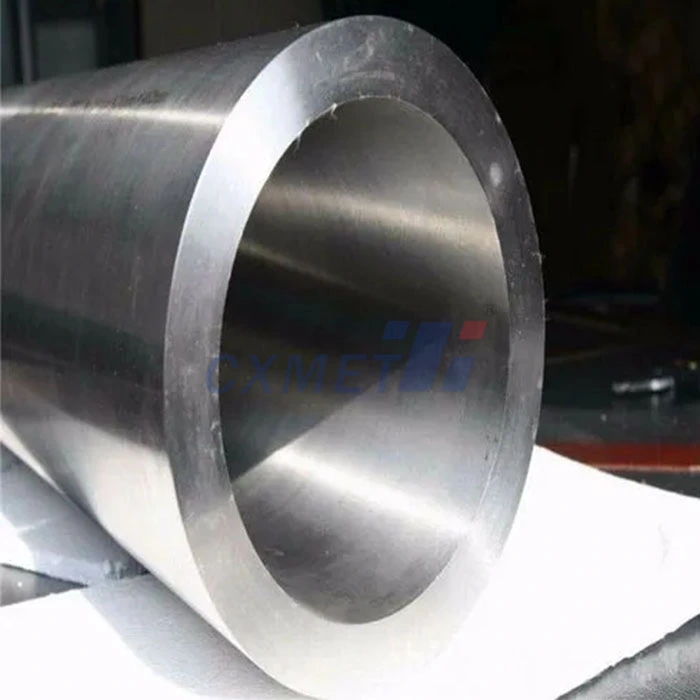

Product Introduction: ASTM B338 titanium tube

ASTM B338 Titanium Tube is a high-quality product manufactured to meet stringent industry standards. This ASTM B338 titanium tube is crafted from premium titanium material, ensuring exceptional durability and reliability in various applications. With precise engineering and adherence to ASTM B338 standards, this tube guarantees superior performance and longevity.

Precision engineering plays a pivotal role in the production of ASTM B338 tubes. Each tube undergoes a series of controlled processes to ensure dimensional accuracy, straightness, and a uniform wall thickness that adhere strictly to the standard's requirements. This attention to detail translates into tubes that exhibit consistent performance under pressure and temperature fluctuations, making them suitable for critical applications such as heat transfer systems and hydraulic lines in aerospace and defense sectors.

Adherence to ASTM B338 standards also encompasses thorough testing and inspection protocols. Every batch of tubes is subject to rigorous non-destructive tests (NDT), including eddy current testing, ultrasonic testing, and hydrostatic or pneumatic pressure testing, to verify their integrity and freedom from defects. This commitment to quality control not only guarantees safety in operation but also ensures the ASTM B338 titanium tubes will perform reliably over extended service lives, reducing maintenance costs and downtime.

Product Standards:

ASTM B338: Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers.

Basic Parameters:

Material: Titanium
Standard: ASTM B338
Size Range: Customizable
Wall Thickness: Customizable
Length: Customizable
Surface Finish: Polished, Satin, or Customized

Category	Parameter	Value
Standards	Specification	ASTM B338
Grades	Available Grades	Gr1, Gr2, Gr3, Gr7, Gr9, Gr11, Gr12, Gr16, Gr17
Chemical Composition	Titanium (Ti)	Balance
	Oxygen (O)	Varies by Grade, e.g., ≤ 0.18% for Gr2
	Carbon (C)	≤ 0.08%
	Nitrogen (N)	≤ 0.03%
	Hydrogen (H)	≤ 0.015%
	Iron (Fe)	Varies by Grade, e.g., ≤ 0.3% for Gr2
	Palladium (Pd) (for Grades 7, 11, 16, 17)	Varies by Grade
Mechanical Properties	Tensile Strength (σb)	Varies by Grade, e.g., ≥ 345 MPa for Gr2
	Yield Strength (σ0.2)	Varies by Grade, e.g., ≥ 275 MPa for Gr2
	Elongation (δ5)	Varies by Grade, e.g., ≥ 20% for Gr2
Physical Properties	Density	4.51 g/cm³
	Elastic Modulus	105 GPa
	Coefficient of Thermal Expansion	8.6 × 10⁻⁶ /°C (0 - 315°C)
	Thermal Conductivity	16.3 W/m·K (20°C)
	Specific Heat Capacity	0.54 J/g·K (20°C)
Dimensions	Outer Diameter	3.18 mm - 114.3 mm
	Wall Thickness	0.5 mm - 7.0 mm
	Length	Up to 15 meters
Applications	Common Applications	Heat exchangers, condensers, evaporators, nuclear power industry, chemical processing, desalination plants, etc.

Product Attributes:

High Corrosion Resistance
Excellent Strength-to-Weight Ratio
Superior Thermal Conductivity
Low Density
Non-magnetic
Biocompatible

Product Functions:

ASTM B338 titanium tube serves as a crucial component in various industrial and commercial applications. It encourages proficient warm exchange and liquid transport, making it perfect for utilize in condensers, warm exchangers, aviation components, chemical handling gear, and therapeutic gadgets.

Features:

Seamless or Welded Construction
Precision Engineering
Consistent Wall Thickness
Tight Tolerances
Smooth Surface Finish
Resistance to Extreme Temperatures and Harsh Environments

Advantages and Highlights:

Exceptional Corrosion Resistance: Suitable for Marine and Chemical Environments
Lightweight: Reduces Installation and Transportation Costs
High Strength: Ensures Structural Integrity and Longevity
Versatile: Can be Fabricated to Meet Diverse Requirements
Cost-Effective: Low Maintenance and Extended Service Life

Application Areas:

Chemical Processing
Oil and Gas Industry
Power Generation
Aerospace Engineering
Medical Implants
Marine Engineering

OEM Services:

We offer comprehensive OEM services, allowing clients to customize ASTM B338 Titanium Tubes according to their specific requirements. Our experienced titanium pipe suppliers and state-of-the-art manufacturing facilities ensure the highest quality and precision in every order.

FAQs:

What is the maximum temperature resistance of ASTM B338 Titanium Tube?
- ASTM B338 Titanium Tube exhibits excellent heat resistance, capable of withstanding temperatures up to [insert temperature].
Can ASTM B338 Titanium Tube be welded?
- Yes, ASTM B338 Titanium Tube can be welded using appropriate techniques and filler materials compatible with titanium.
What certifications and test reports are provided with each shipment?
- We provide various standard and customized certifications along with complete test reports to ensure product quality and compliance with industry standards.

About SHAANXI CXMET TECHNOLOGY CO., LTD:

SHAANXI CXMET TECHNOLOGY CO., LTD is a reputable manufacturer and supplier of titanium 3 inch pipe. With years of experience in the industry, we specialize in producing high-quality titanium products tailored to meet the specific needs of our clients. We offer a wide range of standard and customized options, backed by room certifications and comprehensive test reports to ensure product excellence and reliability. Our commitment to customer satisfaction is reflected in our fast delivery, secure packaging, and unwavering support for testing and OEM requirements. For inquiries or orders, please contact us at sales@cxmet.com.
